Data Bus on Board Diagnostic Interface J533 Gateway

Read Measuring Value Block Display Groups, Interpreting

=> [ Display Group 125, Overview ]

=> [ Display Group 125, Evaluating ]

=> [ Display Group 126, Overview ]

=> [ Display Group 126, Evaluating ]

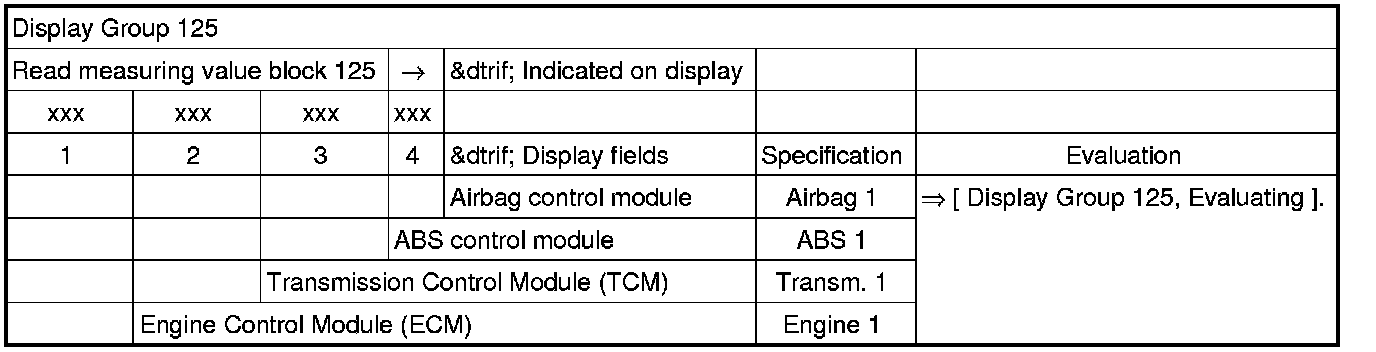

Display Group 125, Overview

• Display fields in display groups 125 and 126 provide the CAN Data Bus function status codes of various control modules connected to the vehicle CAN Data Bus network.

• If a vehicle is not equipped with control module(s) or components listed in the following display groups, the applicable display field remains blank.

• Display fields may vary depending on instrument cluster manufacturer (VDO or MMO).

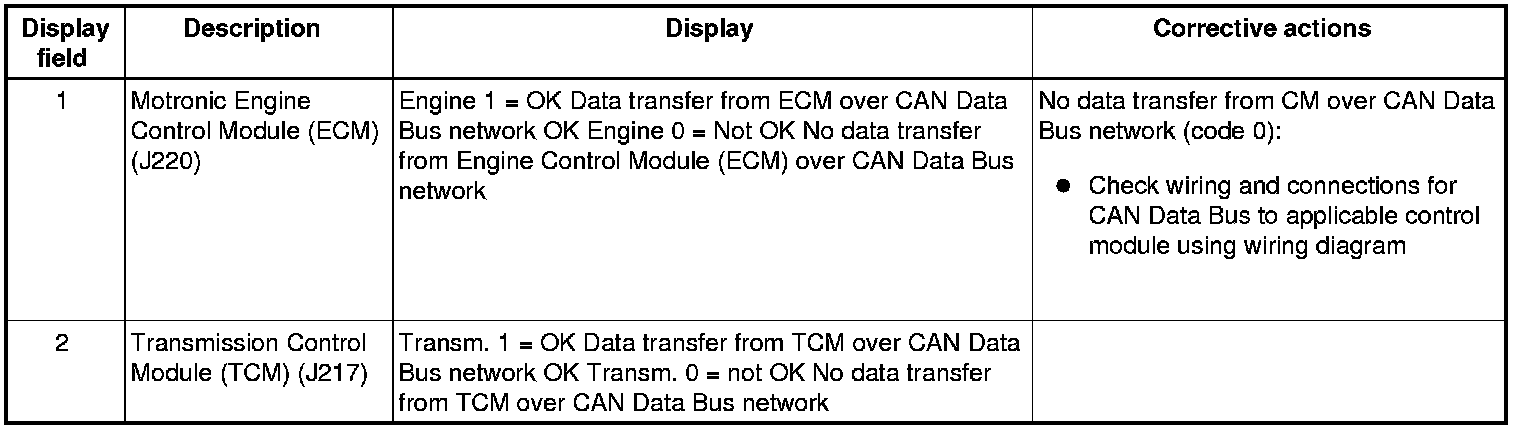

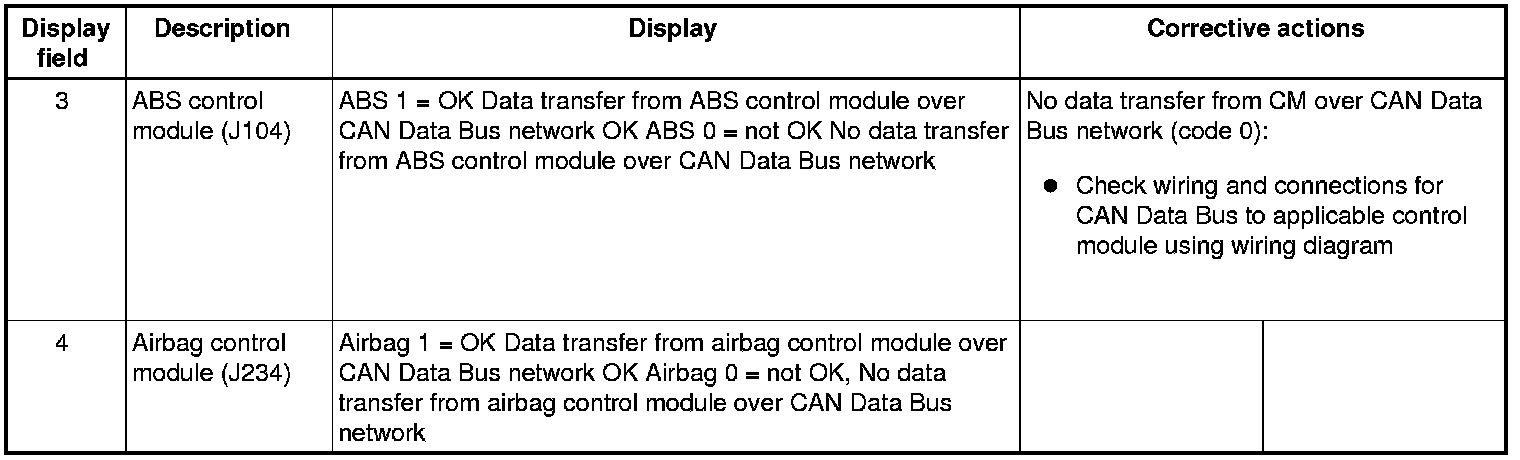

Display Group 125, Evaluating

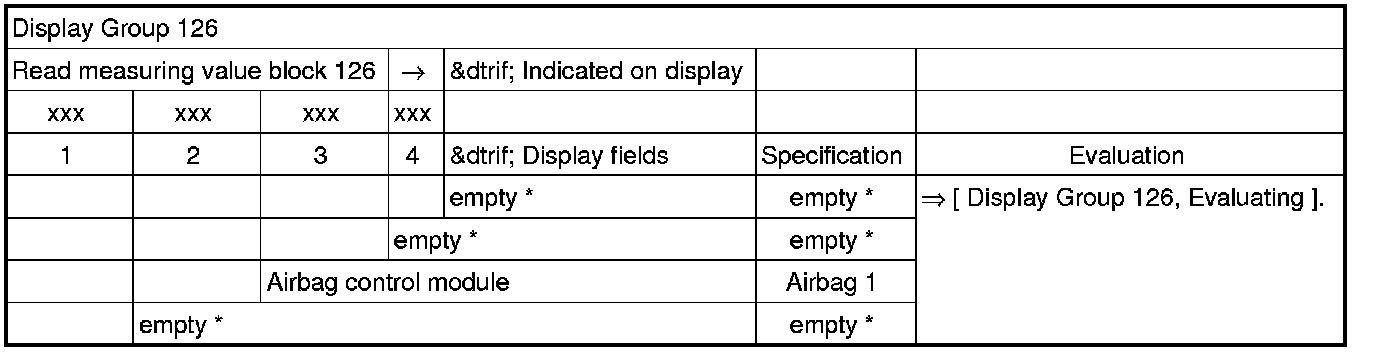

Display Group 126, Overview





* Display field blank

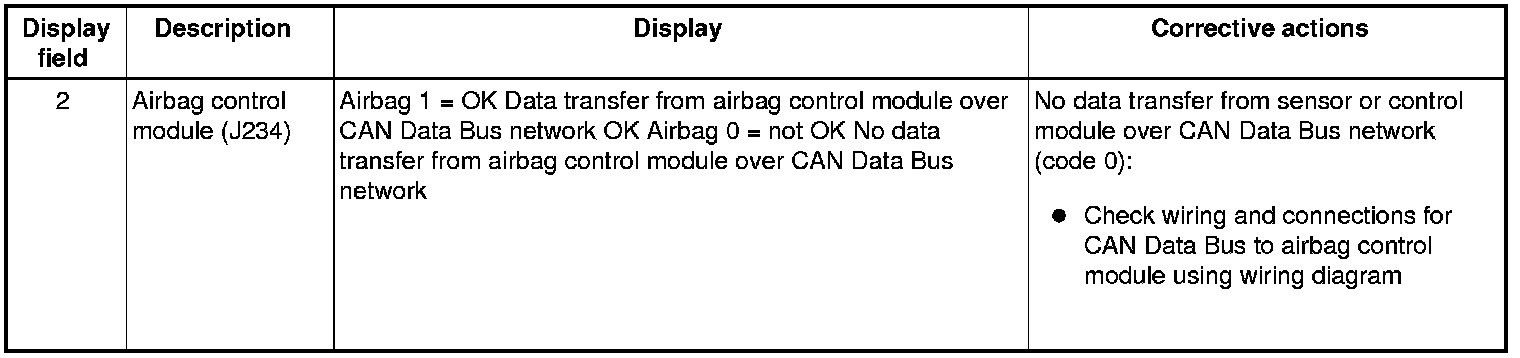

Display Group 126, Evaluating
