Clock: Testing and Inspection

03 - Service Procedures


Digital Clock, Setting Time and Display Mode

• Digital clock is located above rear view mirror in left field of display.

• 12 and 24 hour modes are possible in the display.

• Adjustment for time and display mode is performed via two buttons on left and right of display.

Setting clock

Perform the setting as follows:





- Switch ignition on.

Hour and minute setting:

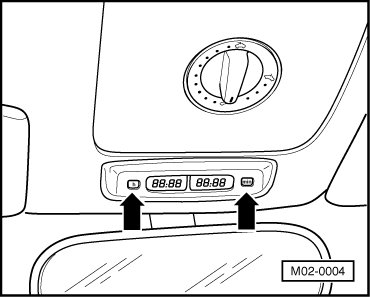

To set the clock, two push-buttons are arranged at right and left of display - arrows -. The hour is set using the left button - h -, the minute is set with the right (min).





- Press briefly to advance clock by one hour or one minute respectively. Sustained pressing advances the hours/minutes through the whole sequence.

Second setting:

The clock can be set accurately to the second using the Minute button.

- Press (min) button until the clock displays one minute less than the time to be set.

- Press (min) button at the instant when the second display of an accurate clock has reached a full minute or the time signal sounds from the radio.

Select 12-hour or 24-hour display mode.

- Switch ignition off.





- Press and hold both buttons for hour - h - and minutes (min) at the same time for longer than 3 seconds.

The new mode appears on the display.

- Select display mode desired by the customer.
