Heater Core Bulkhead Seal, Installation Position






Heater Core Bulkhead Seal, Installation Position

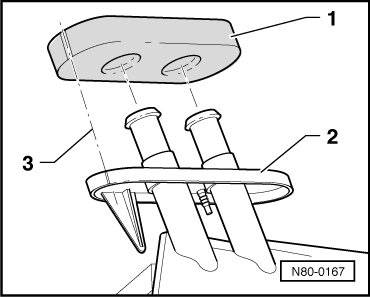

The seal between the heater core and the bulkhead has a positioning mark.

- Install the seal - 1 - so that the notches on the seal and the base plate - 2 - align - 3 -.
