Dust and Pollen Filter, Replacing Filter Element

03 - Service Procedures

Dust and Pollen Filter, Replacing Filter Element

The filter is located beneath the inner plenum chamber cover on the right side.

Remove inner plenum chamber cover, then the right end plate.

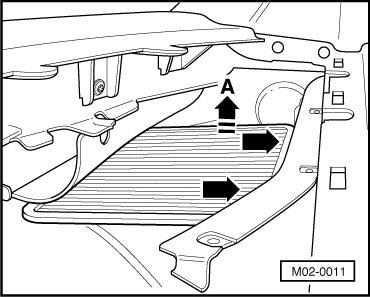

- Press retainers of filter housing - arrows - in direction of - arrow - and remove filter element with frame upward - arrow A -.





- Remove filter element from frame.

• Observe waste disposal regulations!

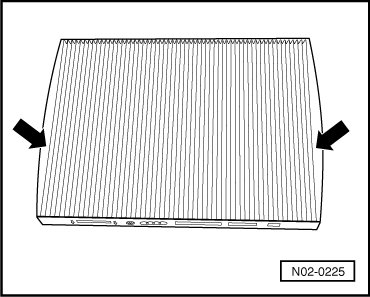

- Guide left and right frame edge respectively into first fin - arrows - of new filter element.





- Guide frame with tabs - 1 - into corresponding recess in filter housing and press frame with filter element downward.

Installation is reverse of removal.
