Dust and Pollen Filter

Dust and Pollen Filter

The filter is located in the right rear of the instrument panel under a cover.

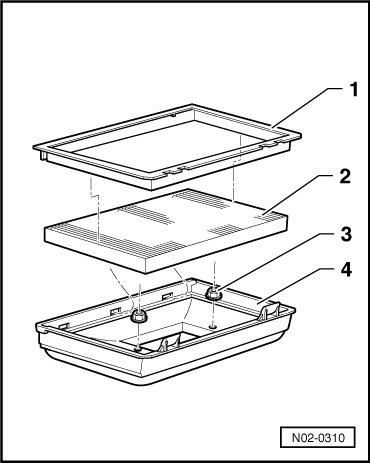

Components of dust and pollen filter:





1. Frame

2. Filter element

3. Plastic nut, 2.5 Nm

4. Filter housing with seal

Removing

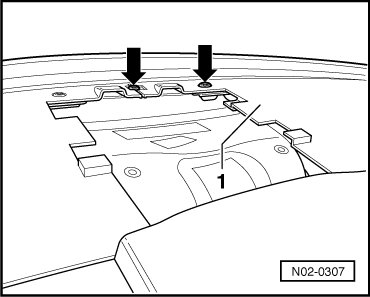

- Push center cover - 1 - forward - arrow A - and lift up to remove.





- Remove screws - arrows -.

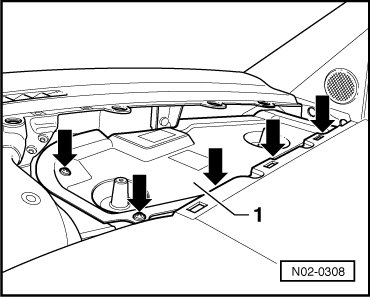

- Lift right plenum panel cover - 1 - and remove from clips at front and rear edge.

- Pull cover - 1 - toward center of vehicle and out of retainer in A-pillar to remove.

- Remove screws - arrows - and remove right closeout panel - 1 -.





- Remove rubber grommet - 1 -.

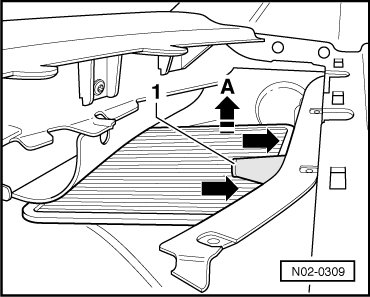

- Press tabs of filter housing in direction of - arrow -.

- Remove filter element with frame in upward direction - arrow A -.

Installing

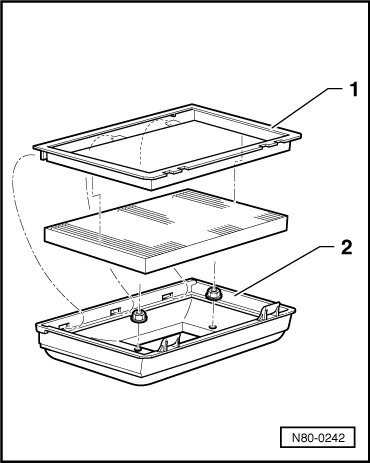

- Guide frame - 1 - into first slot on left and right sides of new filter element.

- Press frame with filter into housing - 2 - and engage retainers.
