Air Duct: Service and Repair

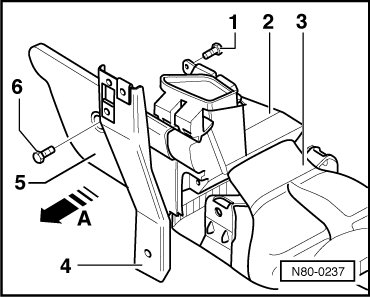

Connecting Duct





1. Bolt

2. Connecting duct

3. Rear duct

4. Retainer

5. Cover

6. Bolt

Removing

First do the following:

- Remove glove box.

- Remove steering column trim.

- Remove center air outlet console => [ Center Air Outlet Console ] Center Air Outlet Console.

- Remove center console.

- Remove retainer - 4 -.





- Remove cover - 5 -.

- Pull connecting piece out towards the driver side footwell - arrow A -.

Installing

Install in reverse order of removal.
