Air Conditioning

Temperature Door Cable

Cable sleeve marking: Beige

Installing, prerequisites

• Heating and A/C controls are installed.

• Connecting duct removed => [ Connecting Duct ] Service and Repair

Adjusting





- Turn temperature rotary control knob to left onto stop.

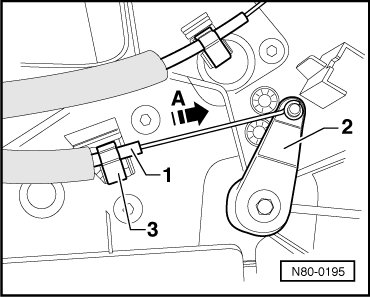

- Attach center wire of cable - 1 - to the temperature door lever - 2 -.

- Push temperature door lever - 2 - onto stop - arrow A - and secure outer cable - 1 - with clip - 3 -.

- Turn temperature rotary control knob to left and right onto stops.

When turning the rotary control knob both end stops must be reached.
