Air Conditioning

Central Door Cable

Cable sleeve marking: Yellow

Prerequisites

• Central door lever correctly adjusted => [ Heater Core Bulkhead Seal, Installation Position ] Heater Core Bulkhead Seal, Installation Position.

• Heating and A/C controls are installed.

• Connecting duct removed => [ Connecting Duct ] Service and Repair.

Installing and adjusting





- Turn air distribution rotary control knob to left onto stop.

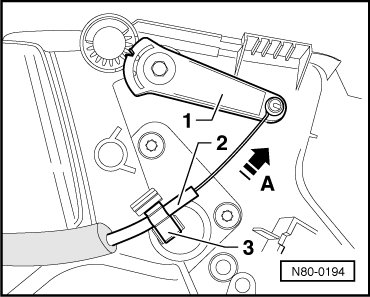

- Attach center wire of cable - 2 - to the central door lever - 1 -.

- Press footwell/defrost door lever onto stop arrow - A - and attach outer cable - 2 - with clip - 3 -.

- Turn air distribution rotary control knob to left and right onto stops.

When turning the rotary control knob both end stops must be reached.
