Upper Oil Pan

Upper Oil Pan

Special tools, testers and auxiliary items required

• Torque wrench (5-50 Nm) (VAG 1331)

• Locking pin (T10115)

• Adapter plates (2036/1)

• 3 M8 x 20 bolts and washers

• Hand drill with plastic brush attachment

• Protective eyewear

• Silicone sealant (D 174 003 A2)

Removing

- Loosen the camshaft gears. Refer to => [ Valve Timing, Adjusting ] Adjustments.

- Remove the control housing cover. Refer to => [ Control Housing Cover ] Service and Repair.

- Tension the chain tensioner - 1 - and secure it using (T10115).





- Remove the guide rail - 2 -.

- Remove the belt pulley side sealing flange. Refer to => [ Sealing Flange, Belt Pulley Side ] Sealing Flange, Belt Pulley Side.

- Remove the lower oil pan. Refer to => [ Lower Oil Pan ] Lower Oil Pan.

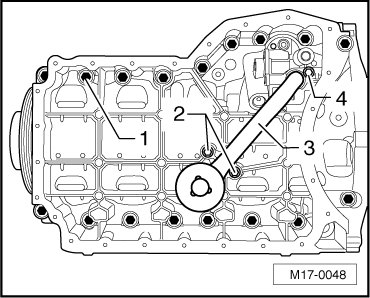

- Remove the bolts - 2 and 4 - and the oil intake pipe.





- Remove the bolts - 1 -.

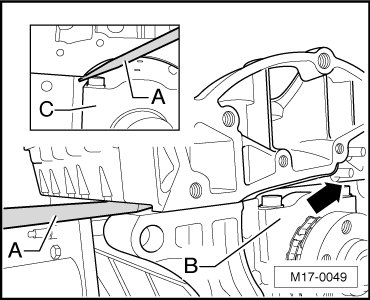

- Pry off the upper oil pan from the cylinder block at the designated points using a suitable screwdriver - A -.





B Bearing cap 6 for the crankshaft
C Bearing cap 1 for the crankshaft

Installing

CAUTION!
To prevent injuries from shavings, wear protective goggles and protective clothing.

- Remove the remainder of sealant from the upper oil pan and cylinder block using a rotating plastic brush.

CAUTION!
Make sure that no sealant residue enters the engine.

- Clean the sealing surfaces so they are completely free of any oil or grease.

- Cut the tube nozzle at the front mark (nozzle diameter approximately 1 millimeter (mm)).





Note the shelf life date.

• The upper oil pan must be installed within 5 minutes after application of sealant.

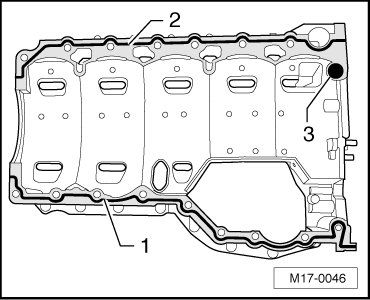

- Apply the sealant bead - 1, 2 and 3 - as shown onto a clean sealing surface of the upper oil pan.





• The sealant bead must be 1.5 to 2.0 mm thick.

- Place the upper oil pan onto the cylinder block and align it on the transmission side.

- Install 2 bolts each at the front and rear hand tight.

- Wipe off excess sealant in area of the - arrows -.





- Loosen the bolts again slightly.

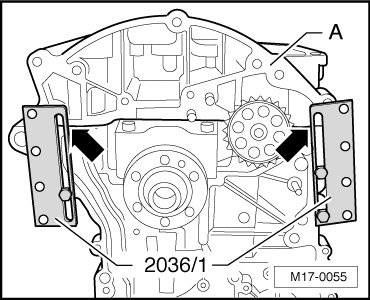

- Secure the (2036/1) from the (2036) onto the cylinder block as shown.

- Press the upper oil pan firmly onto the (2036/1) and tighten the bolts again hand tight.

- Install the remaining bolts and tighten by hand.

Make sure that upper oil pan makes contact on the (2036/1 ).

- Tighten all bolts in a diagonal sequence from the inside working toward the outside.

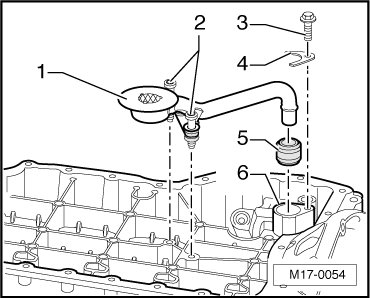

- Install new seal - 5 - into the oil pump - 6 -.





- Secure the oil intake pipe - 1 - and the bracket - 4 - with the bolts - 2 and 3 -.

- Install the guide rail - 2 -, relieve the tension on the chain tensioner - 1 - and pull out the (T10115).





- Adjust the valve timing. Refer to => [ Valve Timing, Adjusting ] Adjustments.

The rest of the installation follows the reverse of the removal procedures. When doing this note the following:

• After installing the oil pan, allow the sealant to dry for approximately 30 minutes. Only after then may the engine oil be added.

• Remove the (T40069) from the cylinder block and install the locking bolt.

• Fill with coolant. Refer to => [ Draining and Filling ] Draining and Filling.

Tightening Specifications
