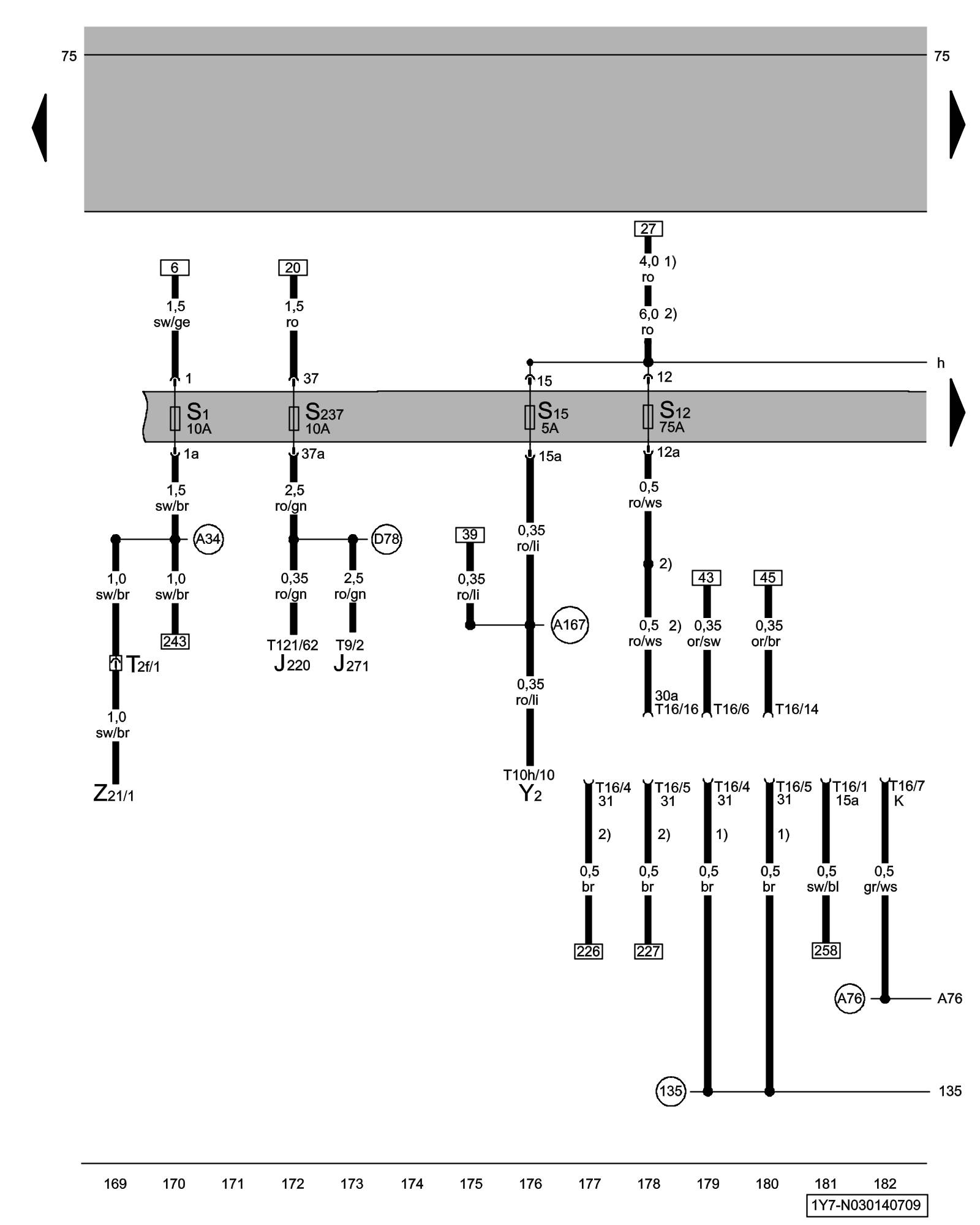

Diagram 630/14 (Tracks 169-182)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Data Link Connector (DLC)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J220 - Motronic Engine Control Module (ECM) Locations

J271 - Motronic Engine Control Module (ECM) Power Supply Relay

S1 - Fuses (on fuse/relay panel)

S12 - Fuses (on fuse/relay panel)

S15 - Fuses (on fuse/relay panel)

S237 - Fuse in Fuse Panel

T2f - Double Connector

T9 - 9-Pin Connector

T10h - 10-Pin Connector on Y2

T16 - 16-Pin Connector, under instrument panel, left, Data Link Connector (DLC)

T121 - 121-pin connector, on J220

Y2 - Digital Clock

Z21 - Right Washer Nozzle Heater

(135) - Ground Connection 2 (in instrument panel wiring harness)

(A34) - Connection (75x) (in instrument panel wiring harness)

(A76) - K-Diagnosis Wire Connection (in instrument panel wiring harness)

(A167) - Plus Connection 3 (30a) (in instrument panel wiring harness)

(D78) - Plus Connection 1 (30a) (in engine compartment wiring harness)

1) - Through June 2007

2) - From July 2007

Previous Diagram 630/13 (Tracks 155-168)

Next Diagram 630/15 (Tracks 183-196)
