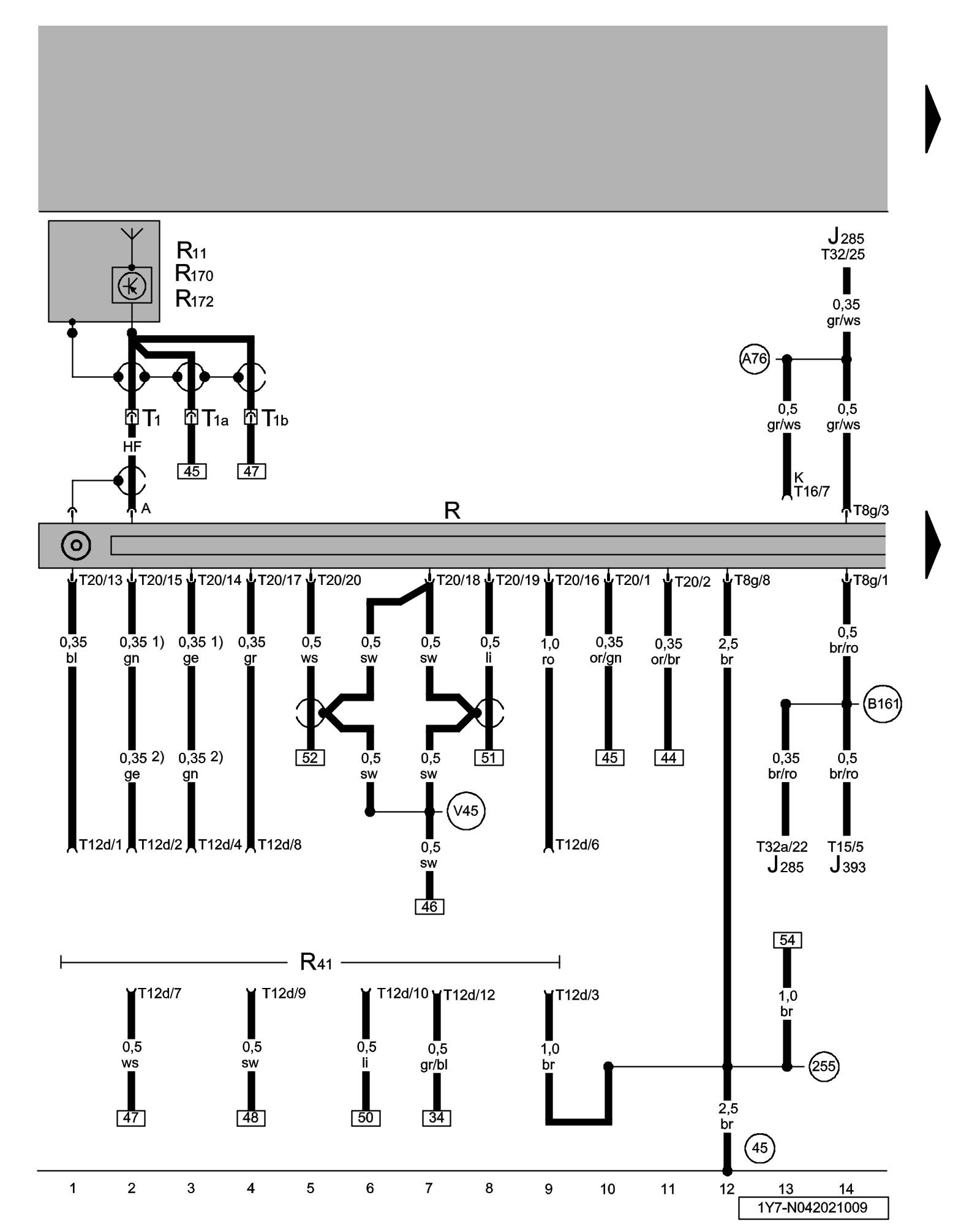

Diagram 642/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio, Antenna, Satellite Antenna, Satellite Tuner Antenna





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J285 - Instrument Cluster Control Module

J393 - Comfort System Central Control Module Central Locking System

R - Radio Premium V and Premium 5.5 Component Overview

R11 - Antenna Locations

R41 - CD Changer Premium V and Premium 5.5 Component Overview

R170 - Satellite Antenna Locations

R172 - Satellite Tuner Antenna Locations

T1 - Single Connector

T1a - Single Connector

T1b - Single Connector

T8g - 8-Pin Connector

T12d - 12-Pin Connector

T15 - 15-Pin Connector

T16 - 16-Pin Connector, under instrument panel, left, Data Link Connector (DLC)

T20 - 20-Pin Connector, on radio

T32 - 32-Pin Connector

T32a - 32-Pin Connector

(45) - Ground Connection (behind instrument panel, center)

(255) - Ground Connection 1 (in radio wiring harness)

(A76) - K-Diagnosis Wire Connection (in instrument panel wiring harness)

(B161) - Anti-Theft Alarm System Connection (in interior wiring harness)

(V45) - Connection 2 (shielding) (in CD-changer wiring harness)

1) - Through June 2009

2) - From July 2009

Next Diagram 642/3 (Tracks 15-28)
