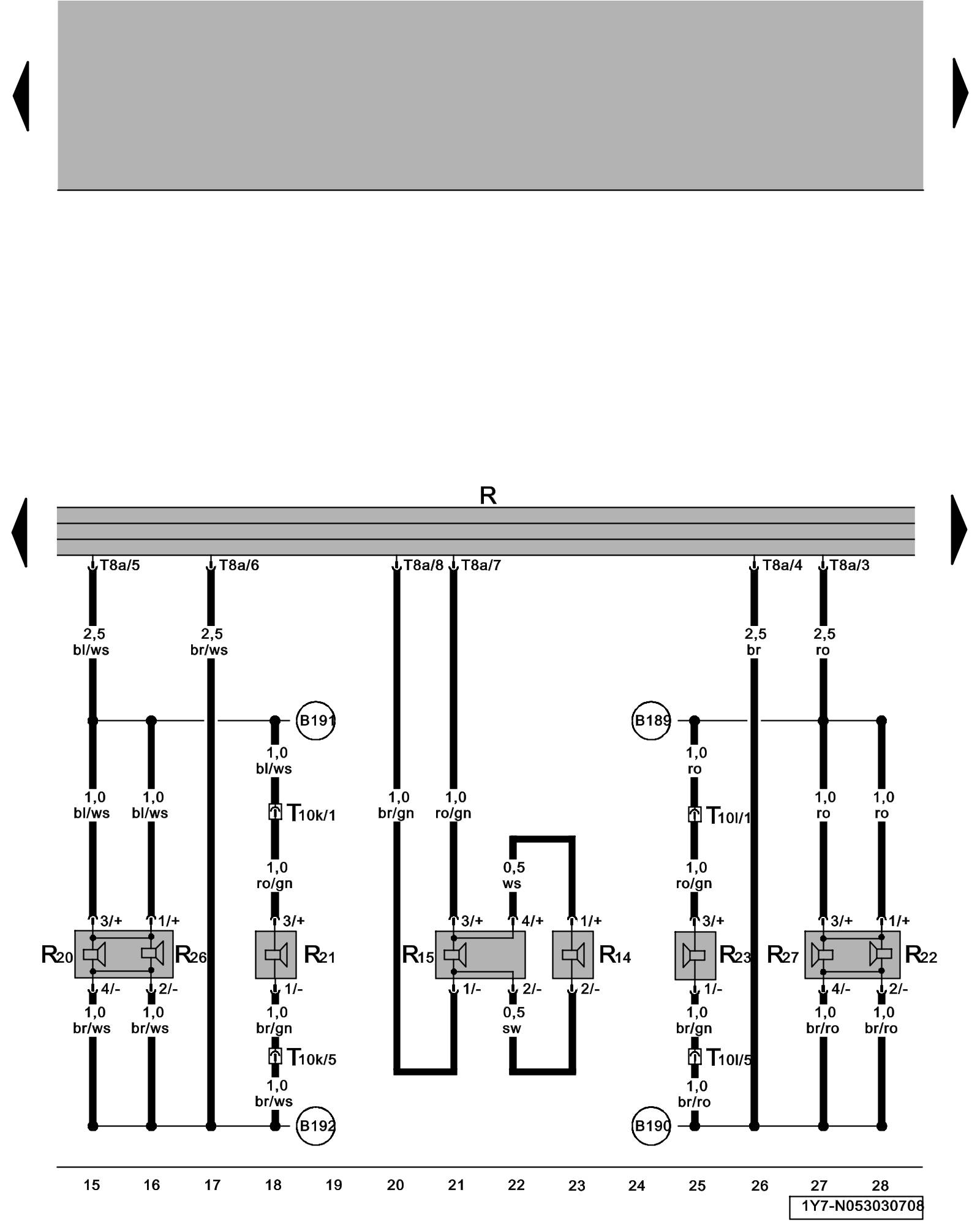

Diagram 653/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio, Loudspeakers





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R - Radio Premium V and Premium 5.5 Component Overview

R14 - Left Rear Treble Speaker

R15 - Left Rear Bass Speaker

R20 - Left Front Treble Speaker

R21 - Left Front Bass Speaker

R22 - Right Front Treble Speaker

R23 - Right Front Bass Speaker

R26 - Left Front Midrange Speaker

R27 - Right Front Midrange Speaker

T8a - 8-Pin Connector

T10k - 10-Pin Connector, black, connector station A-pillar, left

T10l - 10-Pin Connector, black, connector station A-pillar, right

(B189) - RF Speaker Plus ( + ) Connection (in passenger compartment wiring harness)

(B190) - RF Speaker Minus ( - ) Connection (in passenger compartment wiring harness)

(B191) - LF Speaker Plus ( + ) Connection (in passenger compartment wiring harness)

(B192) - LF Speaker Minus ( - ) Connection (in passenger compartment wiring harness)

Previous Diagram 653/2 (Tracks 1-14)

Next Diagram 653/4 (Tracks 29-42)
