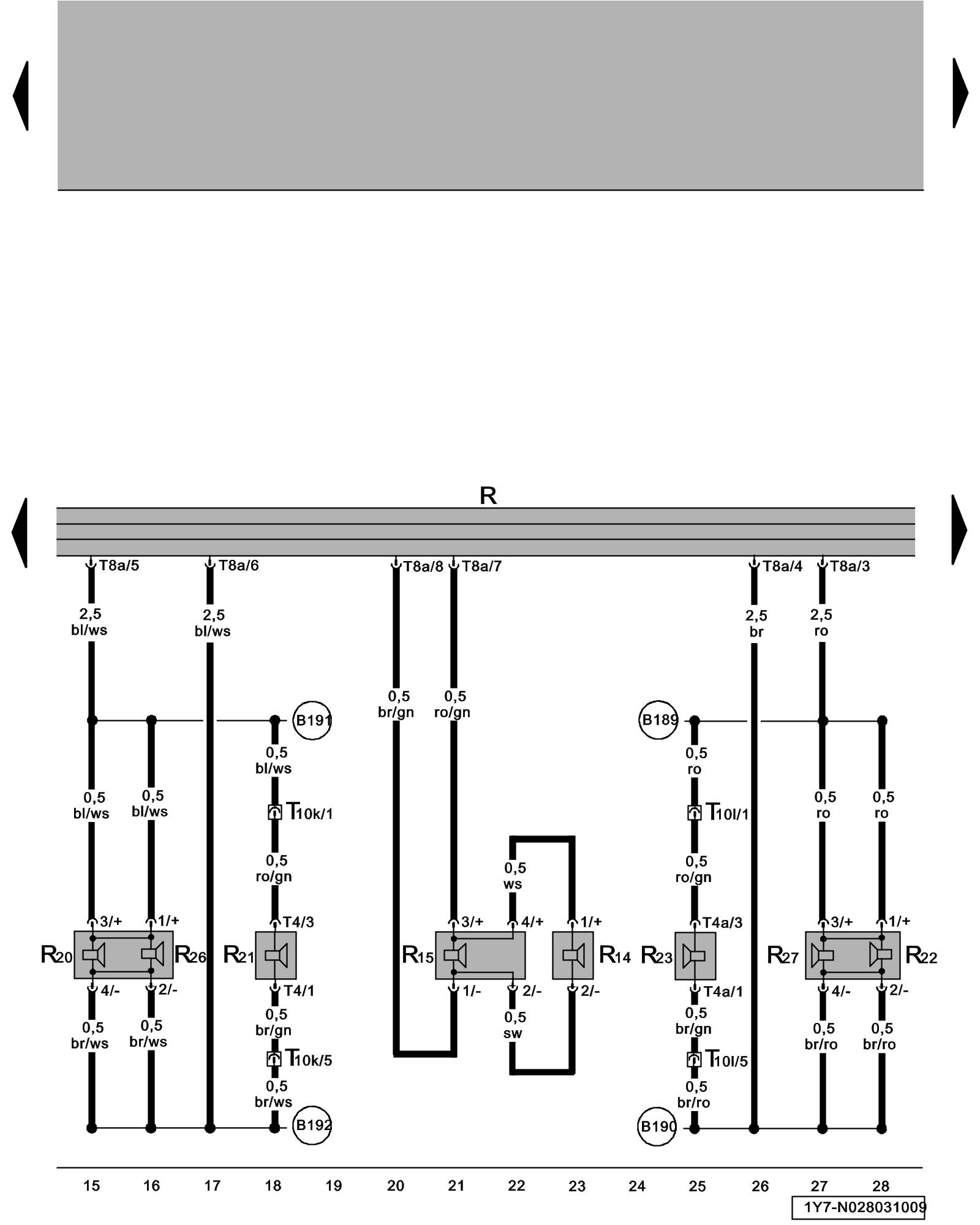

Diagram 628/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio, Treble speakers, Bass speakers, Midrange speakers





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R - Radio Premium V and Premium 5.5 Component Overview

R14 - Left Rear Treble Speaker

R15 - Left Rear Bass Speaker

R20 - Left Front Treble Speaker

R21 - Left Front Bass Speaker

R22 - Right Front Treble Speaker

R23 - Right Front Bass Speaker

R26 - Left Front Midrange Speaker

R27 - Right Front Midrange Speaker

T4 - 4-Pin Connector

T4a - 4-Pin Connector

T8a - 8-Pin Connector

T10k - 10-Pin Connector, black, connector station A-pillar, left

T10l - 10-Pin Connector, black, connector station A-pillar, right

(B189) - Connection (positive, RF speaker) in passenger compartment wiring harness

(B190) - Connection (negative, RF speaker) in passenger compartment wiring harness

(B191) - Connection (positive, LF speaker) in passenger compartment wiring harness

(B192) - Connection (negative, LF speaker) in passenger compartment wiring harness

Previous Diagram 628/2 (Tracks 1-14)

Next Diagram 628/4 (Tracks 29-42)
