Brake Proportioning/Combination Valve: Service and Repair

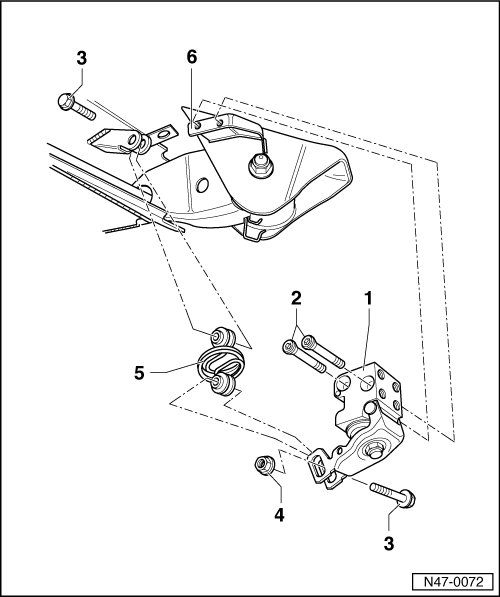

Brake Pressure Regulator Assembly Overview





1 Brake pressure regulator

• Checking and adjusting => [ Brake Pressure Regulator, Checking and Adjusting ] Adjustments.

2 Socket head bolt, 21 Nm

3 Hex bolt, 16 Nm

4 Nut, 21 Nm

5 Pull-spring

6 Retaining bracket
