General Information

General Information

With ABS Mark 60, the Following Versions are Possible in this Vehicle

• ABS

• ABS/EDL/ASR

• ABS/EDL/ASR/ESP

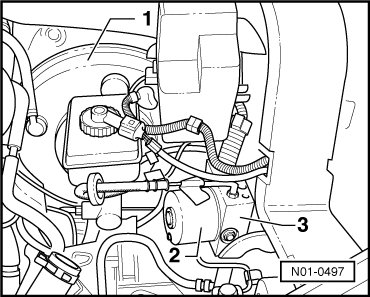

ABS allocation in vehicles.





1 Brake booster
2 Hydraulic unit
3 Hydraulic unit - 2 - and control module - 3 - (47 pin) are one unit. The components can only be separated when removed from vehicle. There are two terminals each with a width of 4.8 mm at both ends of the harness connector.

The ABS brake system is divided diagonally (two circuits). The vacuum brake booster boosts the brakes pneumatically.

For vehicles from 12.01 the mechanical brake assist, which is integrated in the brake booster, is used as special equipment. This can only be recognized via the replacement part number.

It is not possible to repair the mechanical brake assist, the entire brake booster must be replaced.

Function test of brake assist in brake booster => [ Brake Booster Brake Assist, Checking Function, from 12.01 ] Testing and Inspection.

Vehicles with ABS Mark 60 do not have a mechanical brake pressure regulator. A specially designed software program regulates the brake pressure on the rear axle.

ABS malfunctions do not affect the brake system and brake booster. The traditional brake system remains functional even without ABS.

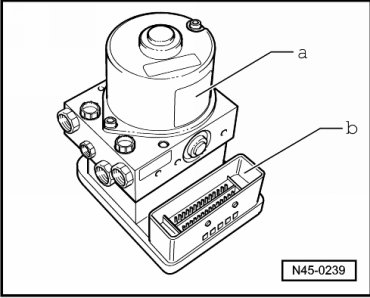

Hydraulic unit - a - and control module - b - are one unit. The components can only be separated when removed from vehicle.





New control modules (replacement parts) are not coded. They must be coded following installation.

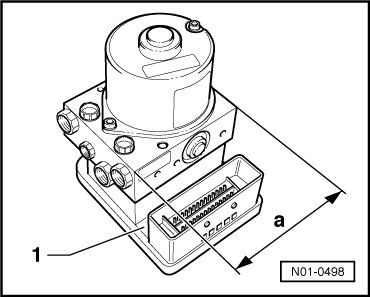

Characteristic of ABS Mark 60





Dimension a = 100 mm

1 Control module, 47 pin (bolted to hydraulic unit). There are two terminals each with a width of 4.8 mm at both ends of the harness connector.
