Cowl Moulding / Trim: Service and Repair

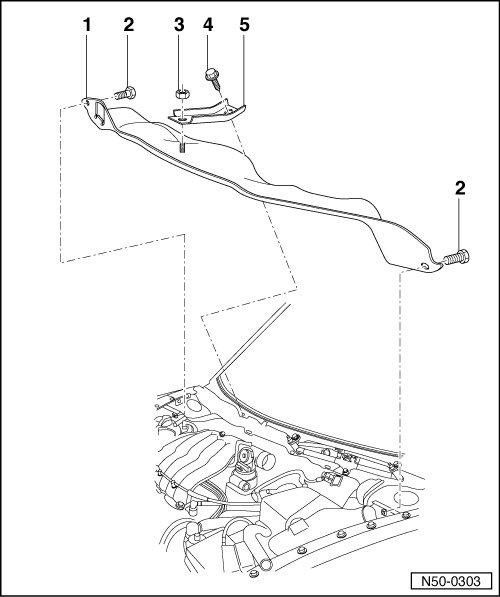

Plenum Chamber Cover





1 Plenum Chamber Sealing Part

• Removing:

- Remove windshield wiper.

- Pull rubber seal off edge of plenum chamber cover.

- Remove components from plenum chamber cover if necessary.

- Remove bolt - 4 -, nut - 3 - and brace - 5 -.

- Remove bolts - 2 -.

- Remove outer plenum chamber cover.

2 Bolt

3 Nut

4 Combination Bolt

5 Brace
