Right Two Piece Backrest Lock Assembly Overview






Rear Seats

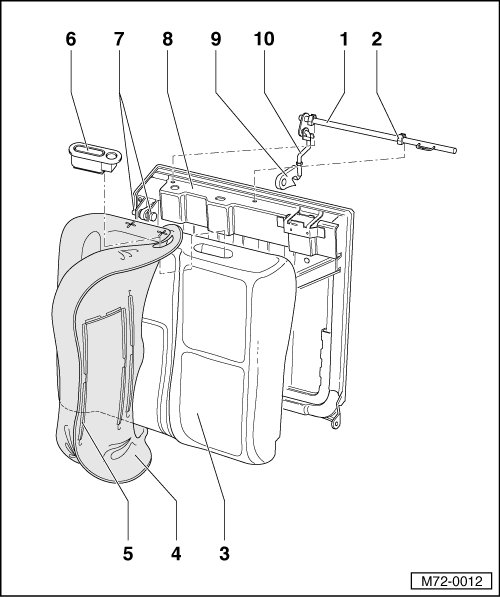

Right Two Piece Backrest Lock Assembly Overview





1 Release Rod

2 Clips

3 Cushion

4 Cover

5 Cushion Wire

6 Button

7 Bolts

8 Rear Bulkhead

9 Catches

10 Connecting Rod
