Backrest Frame Assembly Overview






Front Seats

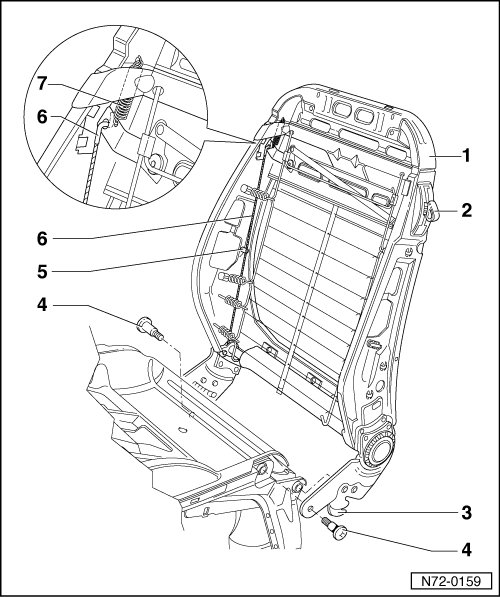

Backrest Frame Assembly Overview





1 Backrest Frame

2 Actuating Lever

3 Catches

4 Bolt

• 20 Nm

• Insert with locking fluid (D 000 600 A2)

5 Cable Guide

6 Cable

7 Spring
