One Piece or Right-Hand Side Backrest Cover and Cushion

Rear Cover and Cushion

One Piece or Right-Hand Side Backrest Cover and Cushion

Removal

- Remove headrests.

- Press down backrest cushion below guide - 2 - and disengage retaining tab using screwdriver or drift - 1 -.





- Remove headrest guide - 2 -.

- Remove clamping strip - 2 - from rear panel and fold out rear part - 1 - of cover.

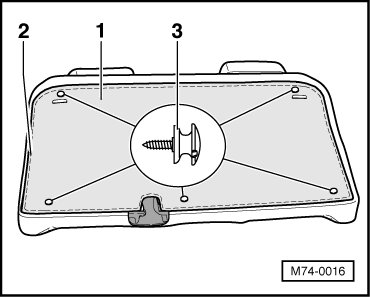

- Remove bolts for net mounting - 3 - (Mexico).

- Remove pivot pins - 1 - on left and right.









- Detach the piping -=> [ (Item 10) Molding ] Rear Cover and Cushion (Overviews)- of the cover -=> [ (Item 1) Cover ] Rear Cover and Cushion (Overviews)- from the rear panel -=> [ (Item 5) Rear Bulkhead ] Rear Cover and Cushion (Overviews)-.

- Remove the cover -=> [ (Item 1) Cover ] Rear Cover and Cushion (Overviews)- and cushion -=> [ (Item 7) Cushion ] Rear Cover and Cushion (Overviews)- from the rear panel -=> [ (Item 5) Rear Bulkhead ] Rear Cover and Cushion (Overviews)-.

- Cut the upholstery clips -=> [ (Item 8) Cushion Clamp ] Rear Cover and Cushion (Overviews)-.

- Remove the cover -=> [ (Item 1) Cover ] Rear Cover and Cushion (Overviews)- from the cushion -=> [ (Item 7) Cushion ] Rear Cover and Cushion (Overviews)-.

Installation

To install, perform the steps used in removal in reverse order.

Use new cushion clamps when reinstalling.
