Sunroof Glass Panel, Adjusting Height

Sunroof

Sunroof Glass Panel, Adjusting Height

Zero position of sunroof OK.

- Tilt sunroof open.

- Slide sun protection toward rear.

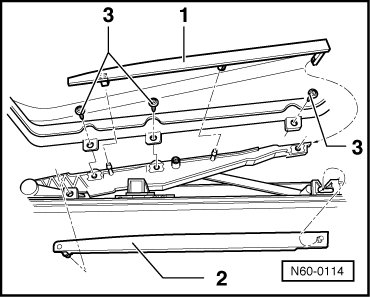

- Unclip lower trim - 2 - in front area to vehicle center and unhook at rear.





- Unclip upper trim - 1 - at front and in center and disengage at rear.

- Loosen securing bolts - 3 - (25-Pin Connector (T25); 4.5 Nm).

- Drive glass panel into "closed" position.

- Perform glass panel height adjustment at front and rear on both sides as follows:

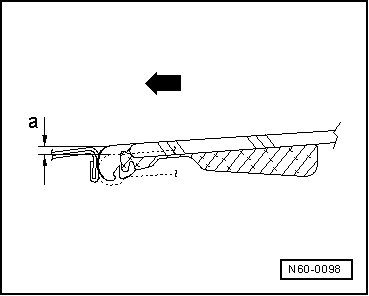

Panel adjustment at front:





- a - = 0 to 1 mm lower than roof

- arrow - = direction of travel

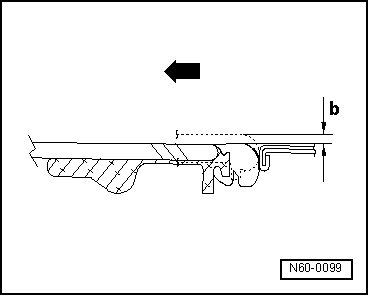

Panel adjustment at rear:





- b - = 0 to 1 mm higher than roof

- arrow - = direction of travel

- Tighten glass panel bolts (4.5 Nm).

Always adjust left and right-hand glass panel sides symmetrically.

- Tilt sunroof open.

- Hook upper trim - 1 - at rear and clip on in center and at front.





- Hook in lower trim - 2 - at rear and clip in at front.
