Headliner Tensioning System Assembly Overview, From December 2003

Convertible Top

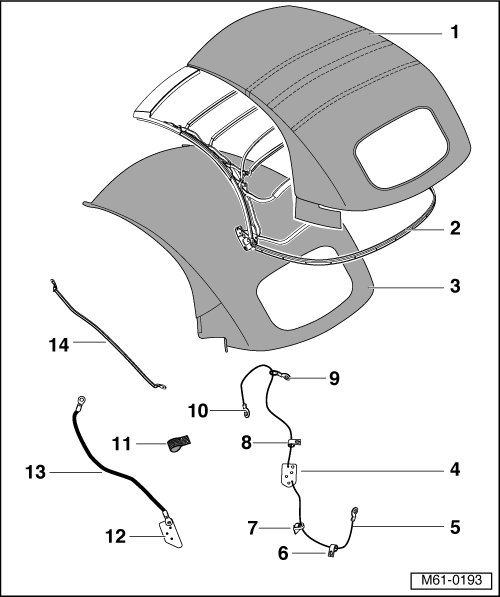

Headliner Tensioning System Assembly Overview, from December 2003





1 Convertible Top Cover

2 Convertible Top Frame

3 Convertible Top Headliner

4 Retaining Plate with Cables

• Secured to reinforcement plate with retaining clips - 12 -

5 Lower Cable Track Guide with Eyelet

• Secured to retaining plate with cable - 4 -

• Secured to frame with rivet

• Always replace

6 Middle Deflector

• Secured to frame with rivet

7 Lower Deflector Eyelet

• Secured to frame with rivet

8 Upper Deflector

• Secured to frame with rivet

9 Sliding Cable with Eyelet

• Secured to frame with rivet

• Inserted into upper cable - 10 -

10 Upper Cable Track Guide With Eyelet

• Secured to retaining plate with cable - 4 -

• Secured to frame with rivet

• Always replace

11 Weaving Guide

• Secured to reinforcement plate with retaining clips - 12 -

• Secured between retaining plate and reinforcement plate- 12 - with cable - 4 -

12 Reinforcement Plate

• With retaining clips

• In headliner - 3 -

13 Tension Strap with Eyelet

• Secured to reinforcement plate - 12 -

• In headliner - 3 -

14 Guide

• Secured to frame with two rivets

• Inserted in weaving guide - 11 -
