Rear Convertible Top Latch Assembly Overview, Electric/Hydraulic Convertible Top

Convertible Top

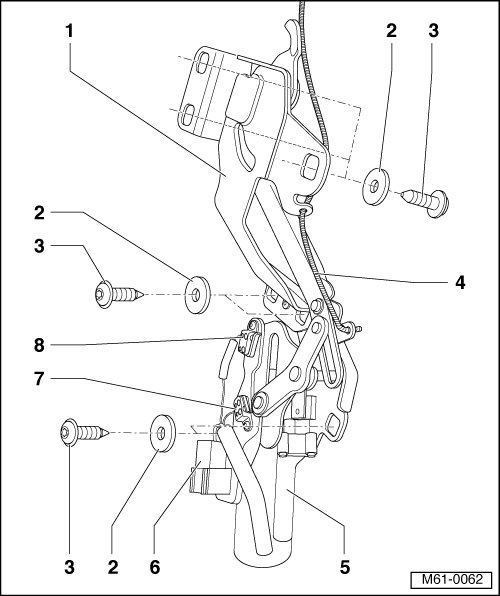

Rear Convertible Top Latch Assembly Overview, Electric/Hydraulic Convertible Top

• Manual convertible top, refer to=> [ Rear Convertible Top Latch Assembly Overview, Manual Convertible Top ]. Rear Convertible Top Latch Assembly Overview, Manual Convertible Top





1 Convertible Top Latch

• Removing:

- Remove side trim.

- Open convertible top.

- Disconnect harness connector - 6 -.

- Remove bolts - 3 -.

• Installing:

- Install bolts- 3 - and tighten lightly.

- Disconnect harness connector - 6 -.

- Align module for convertible top latch.

- Close convertible top.

- When convertible top has engaged, tighten bolts - 3 -.

- Then perform function test.

2 Washer

• Qty. 7

3 Bolt

• 10 Nm

• Qty. 7

4 Cable for Emergency Release

5 Adjusting Motor

6 Harness Connector

7 Microswitch

Convertible top closed

8 Micro switch

Convertible top open
