Small Roof Lid

Pillar and Side Trims, Convertible

Small Roof Lid

CAUTION!
• Prior to removal and installation of the small roof lid, remove the lid module from the side trim, refer to => [ Small Trim Lid Module Assembly Overview ] Pillar and Side Trims, Convertible Overview.

• There is a danger of damaging painted side trim parts!

Removal

- Remove release. Refer to => [ Release ]. Release

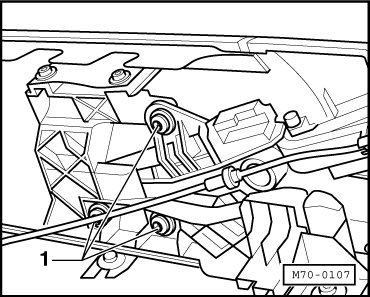

- Unscrew Torx bolts - 1 - and remove from the main frame of the lid module.





• These Torx bolts are used for setting the play for small trims. Refer to => [ Large and Small Trim, Adjusting ] Pillar and Side Trims, Convertible Overview

Installation

- To install, perform the steps used in removal in reverse order.

Small Roof Lid

CAUTION!
• Prior to removal and installation of the small roof lid, remove the lid module from the side trim, refer to => [ Large Trim Lid Module Assembly Overview ] Pillar and Side Trims, Convertible Overview.

• There is a danger of damaging painted side trim parts!

Removal

- Remove release.

- Unscrew Torx bolts - 1 - and remove from the main frame of the lid module.





• These Torx bolts are used for setting the play for small trims. Refer to => [ Small Trim, Adjusting ] Pillar and Side Trims, Convertible Overview.

Installation

- To install, perform the steps used in removal in reverse order.
