Automatic Rollover Protection Assembly Overview






Automatic Rollover Protection, Convertible

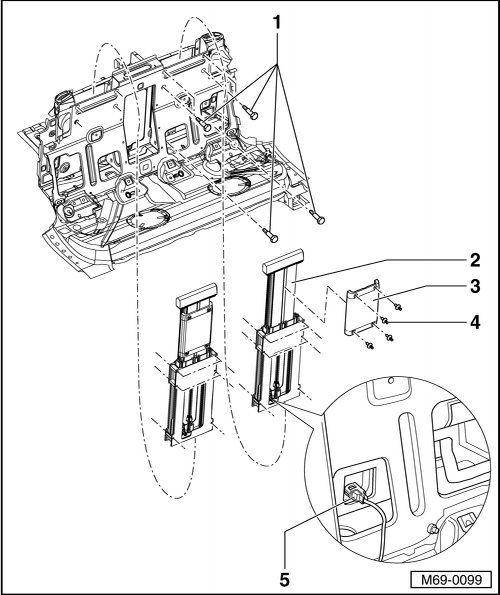

Automatic Rollover Protection Assembly Overview





1 - Bolt

• 29 Nm

2 - Automatic Rollover Protection

• Driven out

3 - Impact Bar

4 - Expanding Rivet

5 - Connector
