Lowering Rollover Protection With Convertible Top Closed

Automatic Rollover Protection, Convertible

Lowering Rollover Protection with Convertible Top Closed

CAUTION!
When lowering the automatic rollover protection, avoid injuring or pinching your hand.

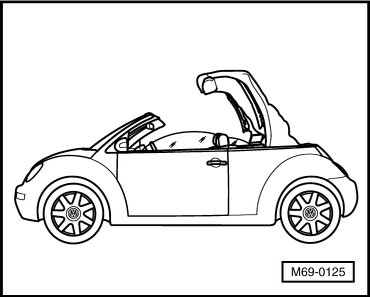

- Open the convertible top until the supporting profiles move freely.





• Do not open top completely! This may damage top.

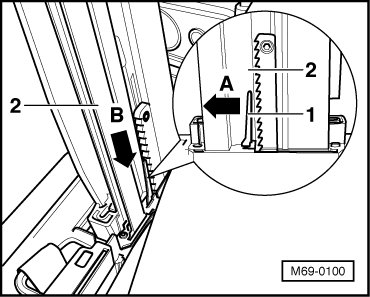

- Press and hold locking mechanism - 1 - in the direction of - arrow A -.





- Push module - 2 - down in the direction of - arrow B -.

- Release the locking mechanism when the rollover protection is correctly engaged - arrow -

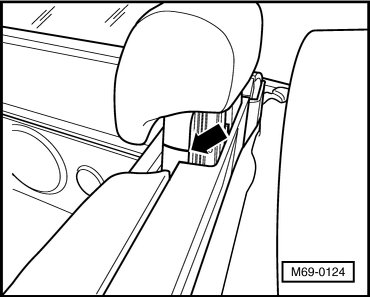

- Push the module down further until it engages.
