Steering Column Trim

Storage Compartments, Covers and Trim

Steering Column Trim

- Pry off cover caps - 1 - and remove bolts - 2 -.





- Remove switch mount - 3 - from bracket.

- Loosen rear cover - 1 - from instrument panel and pull out.





- Remove screws - 2 -.

- Turn rotating handle - 1 - of light switch to position 0.





- Push in rotating handle - arrow A - and turn toward the right - arrow B -.

- Pull switch out of instrument panel - arrow C - and disconnect harness connectors.

- Unclip switch - 2 - for headlight range control and disconnect connector.

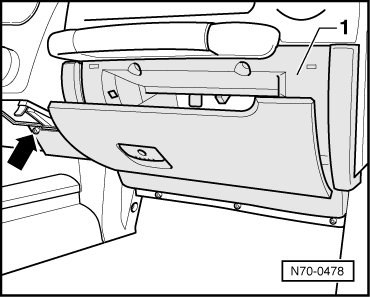

- Remove bolt (under a cover cap) - arrow - from glove compartment - 1 -.





- Remove four screws - 1 -.





- Unclip upper trim - 2 - and remove from instrument panel.
