Inner Plenum Chamber Cover

Storage Compartments, Covers and Trim

Inner Plenum Chamber Cover

- Slide center cover - 1 - of plenum chamber out of locking mechanism toward front and remove from instrument panel - arrow -.





- Remove three bolts - 1 -.





- Lift left cover - 1 - of plenum chamber in center of instrument panel - arrow A - and thereby unclip (front edge clips, back edge clamps).





- Pull cover - 1 - toward vehicle center out of bracket underneath A-pillar - arrow B -.

- Lift right cover - 1 - of plenum chamber in center of instrument panel - arrow A - and thereby unclip (front edge clips, back edge clamps).





- Pull cover - 1 - toward vehicle center out of bracket underneath A-pillar - arrow B -.

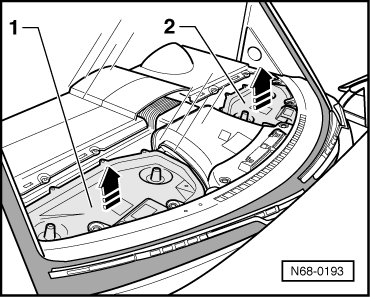

- Remove attachment bolts from right end plate - 1 - and left end plate - 2 - and remove end plates upward from plenum chamber.
