Driver Side Footwell Cover






Storage Compartments, Covers and Trim

Driver Side Footwell Cover

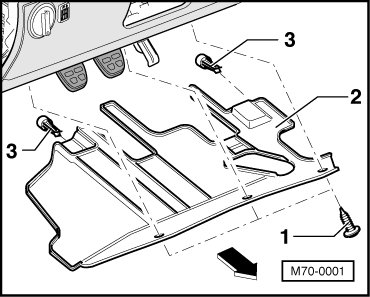

- Remove screws - 1 -.





- Pull driver footwell cover - 2 - out of retainers - 3 -.
