Luggage Compartment Lid Trim, Convertible

Rear Lid/Luggage Compartment Cover Trim

Luggage Compartment Lid Trim, Convertible

Removal

- Remove nuts - 5 - from luggage compartment lid - 2 -.

- Remove trim - 3 - from lower lid - 2 - and on sides.





For vehicles from 12.2003

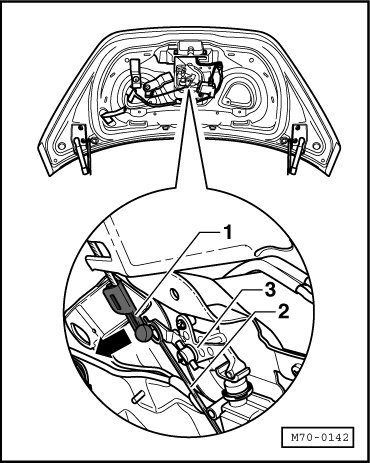

- Release black plastic pin - 1 - of lid lock mechanism - 3 - in the direction of the arrow.





- Release the plastic plug with control cable - 2 - of lid lock mechanism - 3 - in the direction of the arrow.

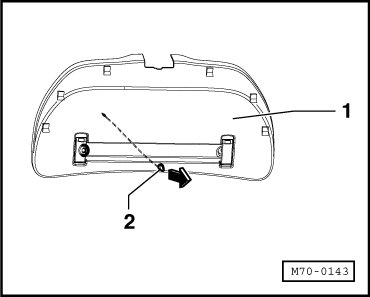

- Remove the plastic plug with control cable - 2 - from trim - 1 - in the direction of the arrow.





Installation

Installation is the reverse of removal.

• Before installing the trim, check the condition and seating of the clips of the trim and the plastic plug with the control cable. Replace the clips if necessary.
