Water Strip

Pillar and Side Trims, Convertible

Water Strip

Removal

- Remove the convertible top.

- Remove bolts - 1 -.

- Remove bolt - 6 -.

- Remove bolt - 7 -.

- Remove the rear wheel housing liner.

- Remove water drain hose - 5 -.

- Remove the water strip in an upward direction.





Installation

- Insert the water strip from above.

- Install all bolts.

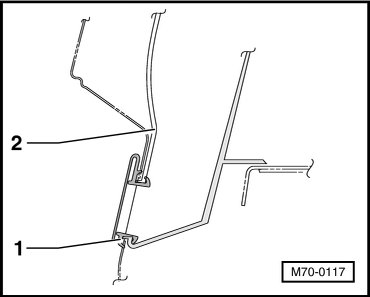

- Insert water drain hose - 1 - in water strip - 2 -.





• Make sure the water drain hose sealing lip engages in the water strip.

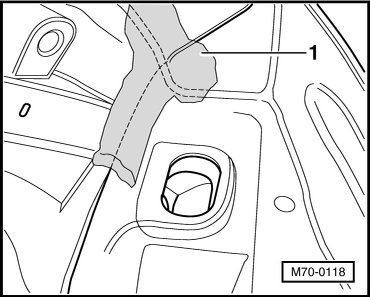

- Apply sealant (D 469 101 A3) in area - 1 -.





- Install the convertible top.
