Small Trim

Pillar and Side Trims, Convertible

Small Trim

Removal

- Remove the main frame of the lid module. Refer to => [ Small Trim Lid Module Assembly Overview ] Pillar and Side Trims, Convertible Overview and => [ Large Trim Lid Module Assembly Overview ] Pillar and Side Trims, Convertible Overview. Item 7

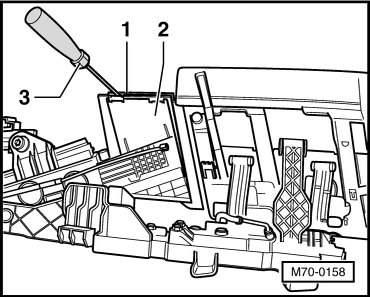

- Carefully pry off trim - 1 - from bracket - 2 - using screwdriver - 3 -.





Installation

To install, perform the steps used in removal in reverse order.
