Rollover Protection Trim

Pillar and Side Trims, Convertible

Rollover Protection Trim





Removal

- Remove the left and right side trim. Refer to => [ Side Trim Assembly Overview ] Pillar and Side Trims, Convertible Overview.

- Remove the rear headrest covers.

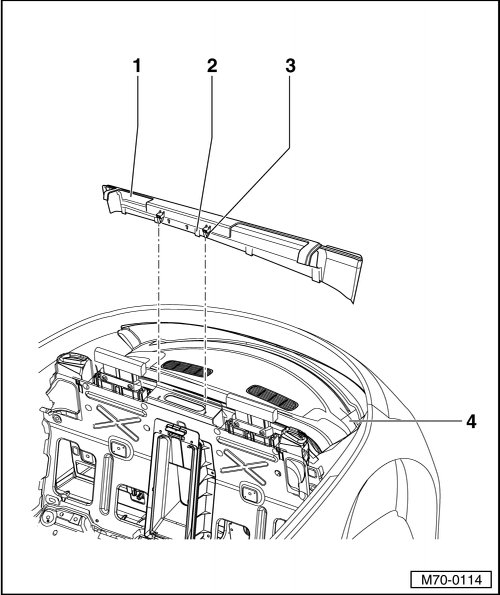

- Unclip clip - 3 -.

- Carefully press retaining tabs - 2 - out of rear shelf - 4 -.

- Remove trim - 1 - in an upward direction.

Installation

To install, perform the steps used in removal in reverse order.
