Pressure Rod

Pillar and Side Trims, Convertible

Pressure Rod

CAUTION!
• Prior to removal and installation of the pressure rod, remove the lid module from the side trim, refer to => [ Small Trim Lid Module Assembly Overview ] Pillar and Side Trims, Convertible Overview.

• There is a danger of damaging painted side trim parts!

Removal

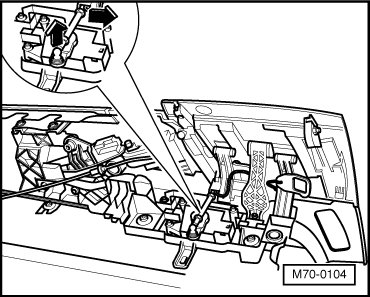

- Press pressure rod out of joint piece - arrows -.





• Emergency release for pressure rod must be removed.

Installation

- Press pressure rod in joint piece - arrows -.

• To install the pressure rod, the large roof lid and the servomotor must be installed.
