Rear Panel Trim, Convertible

Luggage Compartment Trim

Rear Panel Trim, Convertible





Removal

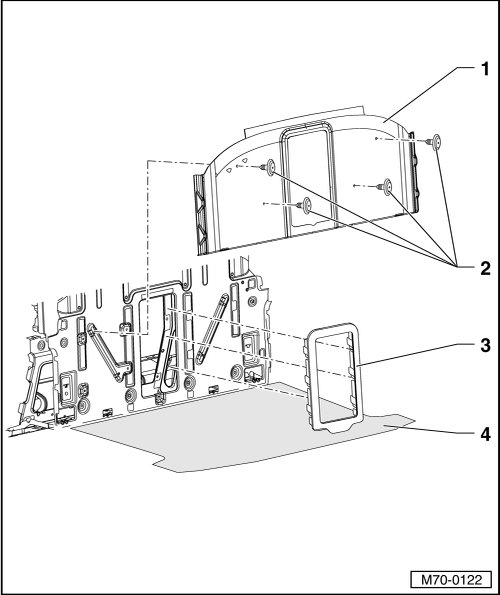

- Remove cargo area floor cover - 4 -.

- Remove the luggage compartment side trim. Refer to => [ Luggage Compartment Side Trim, Convertible ]. Luggage Compartment Side Trim, Convertible

- Disconnect cover - 3 -.

- Remove plug - 2 -.

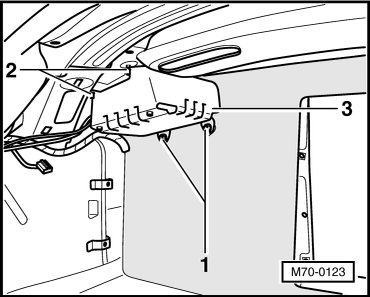

- Loosen bolts - 1 - and remove nuts - 2 -.





- Remove radio amplifier - 3 - and disconnect the electrical connections.

- Remove the rear panel trim.

Installation

Installation is the reverse of removal.
