Right Luggage Compartment Trim Assembly Overview, Convertible






Luggage Compartment Trim

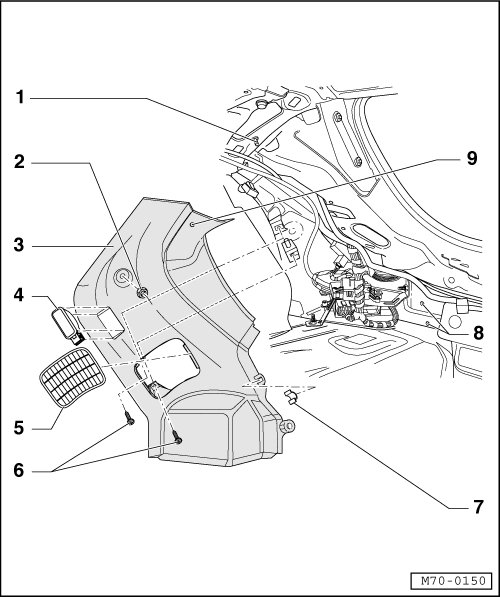

Right Luggage Compartment Trim Assembly Overview, Convertible





1 - Studs

2 - Combination Nut

3 - Luggage Compartment Trim

4 - Interior Light

5 - Vent Grille

6 - Bolt

• Quantity: 2

7 - Clip

8 - Studs

9 - Clip
