Sun Visor: Service and Repair

Storage Compartments, Covers and Trim

Sun Visors, Convertible

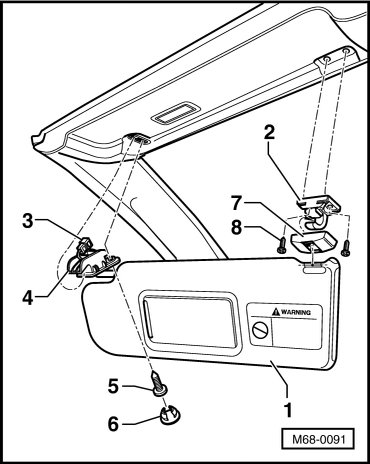

- Unhook sun visor - 1 - out of mount - 2 -.





- Pry off cap - 6 -.

- Remove the bolt - 5 -.

- Remove sun visor mount - 4 - from mounting and disconnect harness connector - 3 -.

- Pry off cap - 7 -.

- Remove bolts - 8 - and remove mounts - 2 -.
