Upper Rear Lid Trim Assembly Overview






Rear Lid/Luggage Compartment Cover Trim

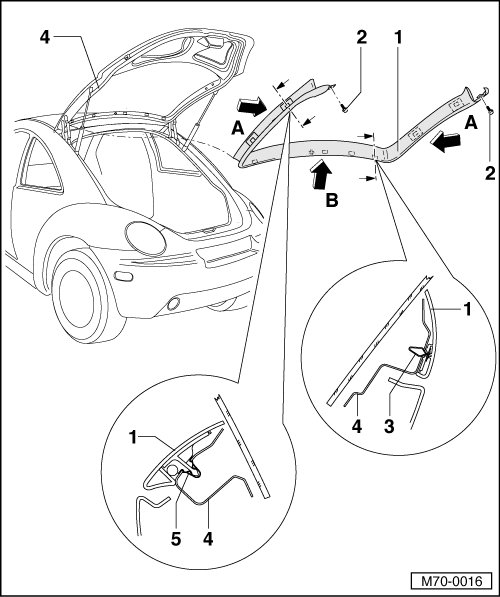

Upper Rear Lid Trim Assembly Overview





1 - Upper Trim

2 - Screw

• Quantity: 2

3 - Clip

• Inserted in the trim

4 - Rear Lid/Luggage Compartment Lid

5 - Clip

• For pin at the trim
