Luggage Compartment Lid Trim Assembly Overview, Convertible

Rear Lid/Luggage Compartment Cover Trim

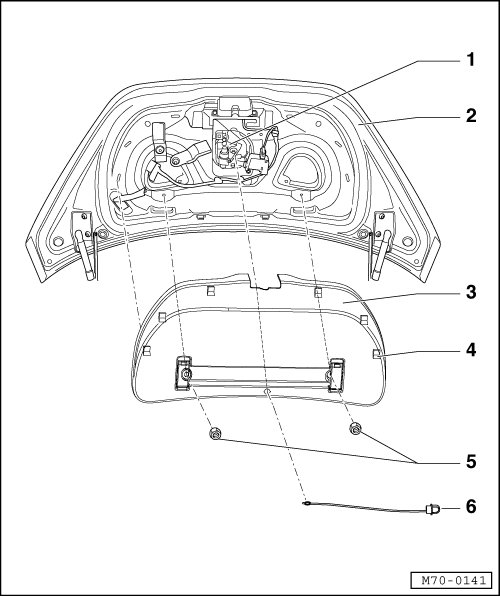

Luggage Compartment Lid Trim Assembly Overview, Convertible





1 - Lid Lock Mechanism

2 - Rear Lid/Luggage Compartment Lid

3 - Trim

4 - Clip

• Quantity: 6

5 - Nut

• Quantity: 2

6 - Plug with Plastic Cable

• Vehicles from 12.2003

• Mounted in trim - 3 -.

• Used in lid lock - 1 -.
