Gas-Filled Strut, Convertible

Rear Lid

Gas-Filled Strut, Convertible

- Support rear lid.





- Lift securing clip - 3 - using screwdriver and remove gas-filled strut - 2 - from ball stud.

• When re-using gas-filled strut, securing clip - 3 - must not be removed completely out of ball socket, otherwise the securing clip may be damaged.

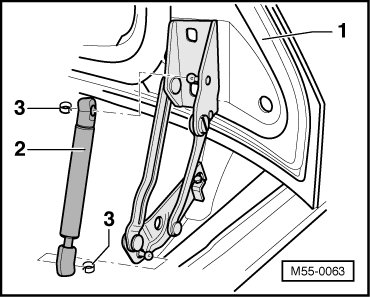

1. Rear lid

2. Gas-filled strut

3. Securing clip
