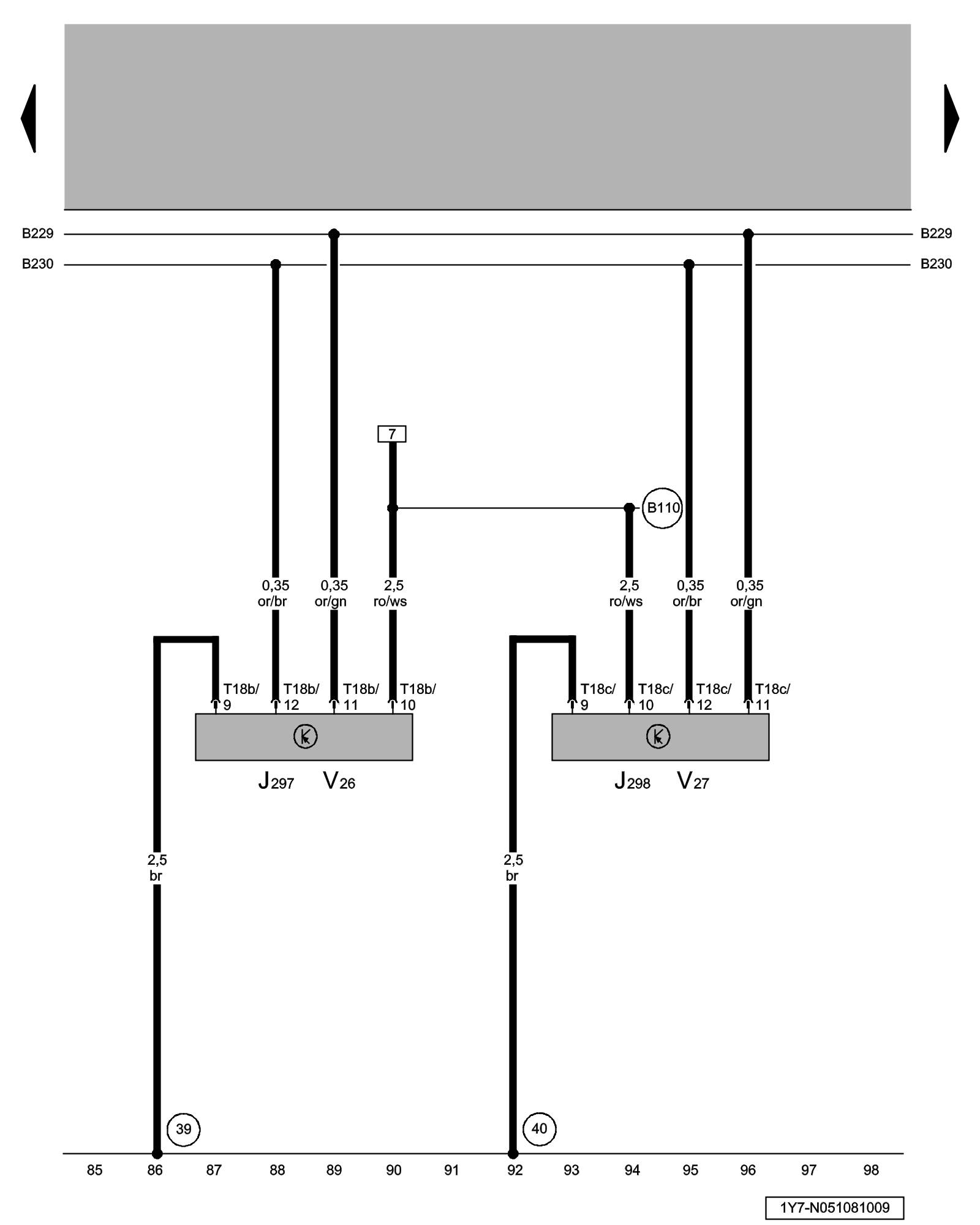

Diagram 651/8 (Tracks 85-98)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Left Rear Power Window Control Module, Right Rear Power Window Control Module, Left Rear Window Regulator Motor, Right Rear Window Regulator Motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J297 - Left Rear Window Regulator Control Module

J298 - Right Rear Window Regulator Control Module

T18b - 18-Pin Connector on -V26-

T18c - 18-Pin Connector on -V27-

V26 - Left Rear Window Regulator Motor

V27 - Right Rear Window Regulator Motor

(39) - Ground Connection, below rear seat, left

(40) - Ground Connection, below rear seat, right

(B110) - Window Regulator Connection (30) (in interior wiring harness)
