Diagram 651/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

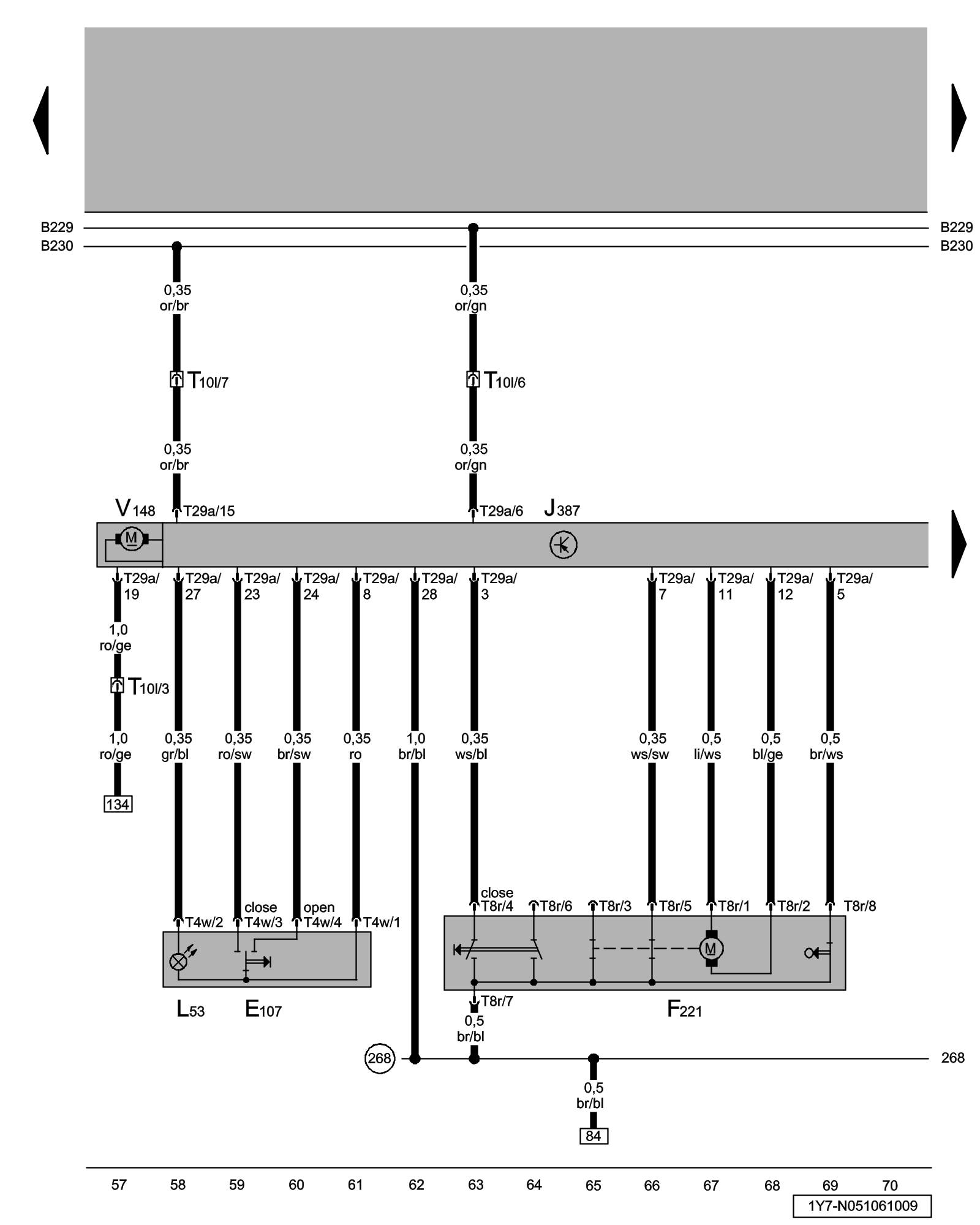

Front Passenger's Door Window Regulator Switch, Front Passenger's Door Central Locking Lock Unit, Front Passenger's Door Control Module, Front Passenger's Window Regulator Motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E107 - Front Passenger's Door Window Regulator Switch

F221 - Front Passenger's Door Central Locking Lock Unit Central Locking System

J387 - Front Passenger's Door Control Module Central Locking System

L53 - Window Regulator Switch Illumination

T4w - 4-Pin Connector, on -E107-

T8r - 8-Pin Connector

T10l - 10-Pin Connector, black, on left A-pillar

T29a - 29-Pin Connector, on Door Control Module

V148 - Front Passenger's Window Regulator Motor Central Locking System

(268) - Ground Connection 2 (in front passenger's door wiring harness)

Previous Diagram 651/5 (Tracks 43-56)

Next Diagram 651/7 (Tracks 71-84)
