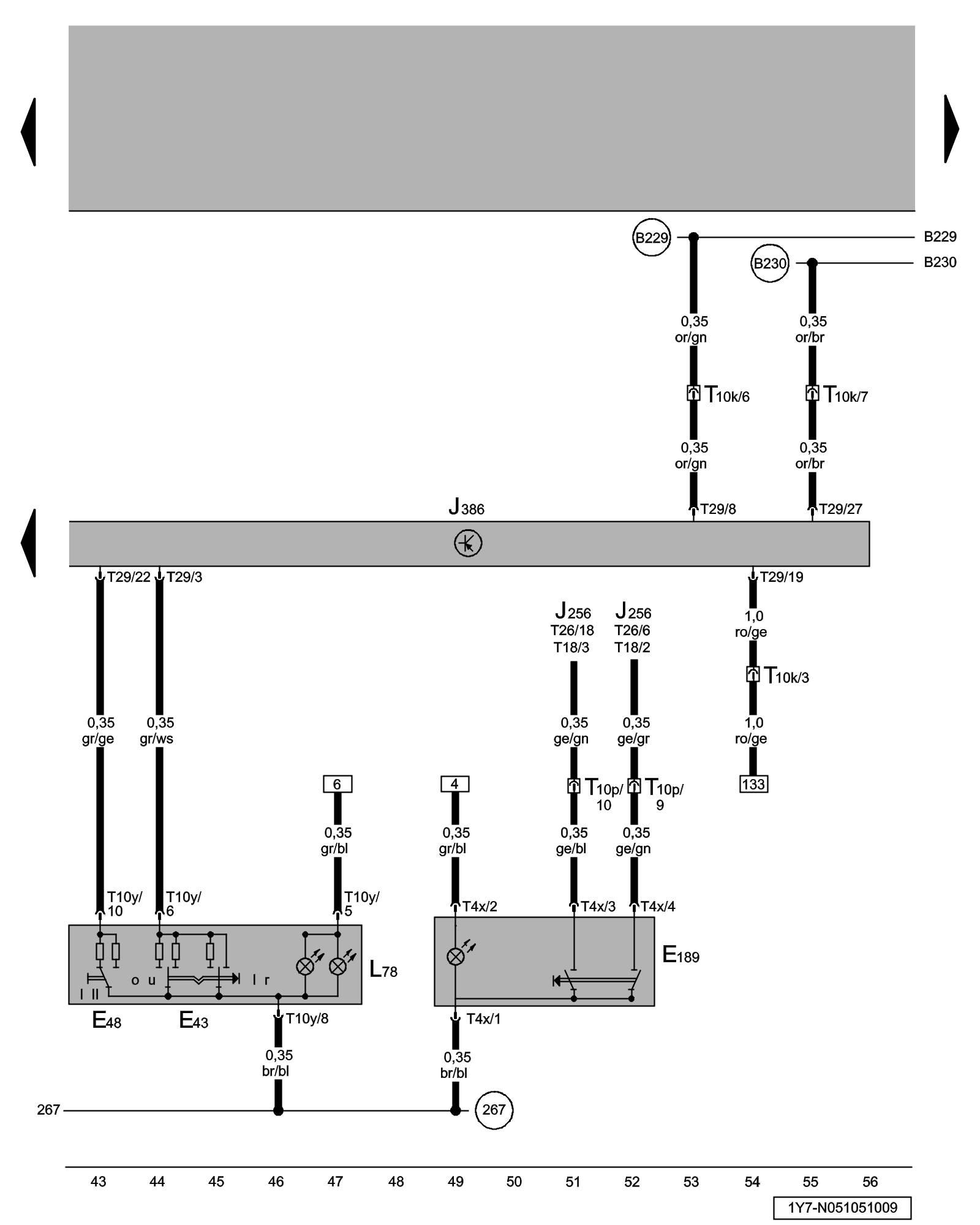

Diagram 651/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Mirror Adjustment Switch, Mirror Selector Switch, Central Window Regulator Switch (in driver's door), Convertible Top Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E43 - Mirror Adjustment Switch

E48 - Mirror Selector Switch

E189 - Central Window Regulator Switch (in driver's door)

J256 - Convertible Top Control Module Electric and Hydraulic Convertible Top Assembly Overview

J386 - Driver's Door Control Module Central Locking System

L78 - Mirror Adjustment Switch Illumination

T4x - 4-Pin Connector, on -E189-

T10k - 10-Pin Connector, black, on left A-pillar

T10p - 10-Pin Connector, blue, on left A-pillar

T10y - 10-Pin Connector

T18 - 18-Pin Connector

T26 - 26-Pin Connector on -J256-

T29 - 29-Pin Connector, on Door Control Module

(267) - Ground Connection 2 (in driver's door wiring harness)

(B229) - High-Bus Connection (in interior wiring harness)

(B230) - Low-Bus Connection (in interior wiring harness)
