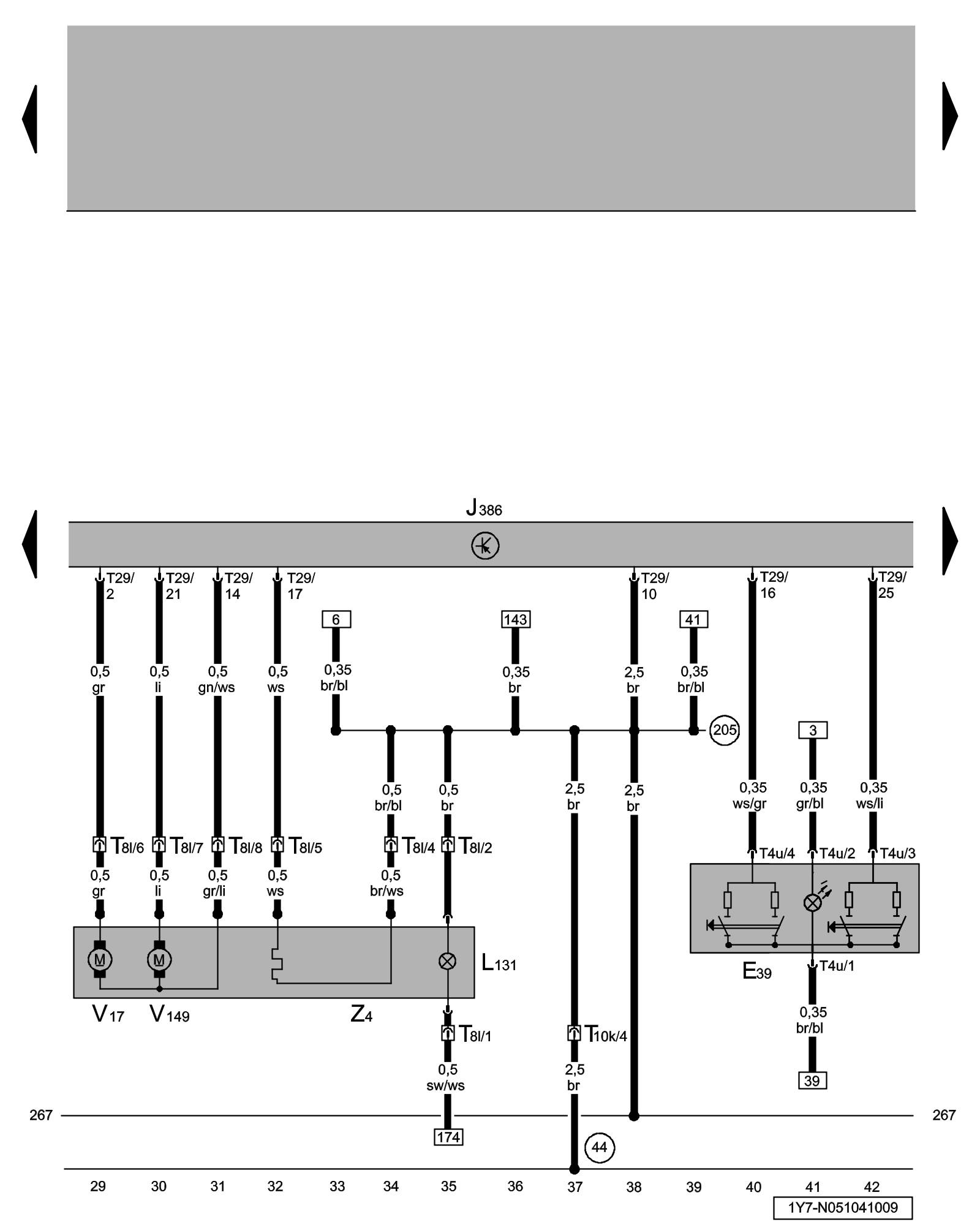

Diagram 651/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Rear Window Regulator Safety Switch, Driver's Door Control Module, Driver's Mirror Adjustment Motor, Driver's Heated Outside Mirror





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E39 - Rear Window Regulator Safety Switch

J386 - Driver's Door Control Module Central Locking System

L131 - Driver's Exterior Mirror Turn Signal Lamp

T4u - 4-Pin Connector, on -E39-

T8l - 8-Pin Connector (in driver's door wiring harness)

T10k - 10-Pin Connector, black, on left A-pillar

T29 - 29-Pin Connector, on Driver's Door Control Module

V17 - Driver's Mirror Adjustment Motor

V149 - Driver's Mirror Adjustment Motor

Z4 - Driver's Heated Outside Mirror

(44) - Ground Connection (on left lower A-pillar)

(205) - Ground Connection (in Driver's door wiring harness)
