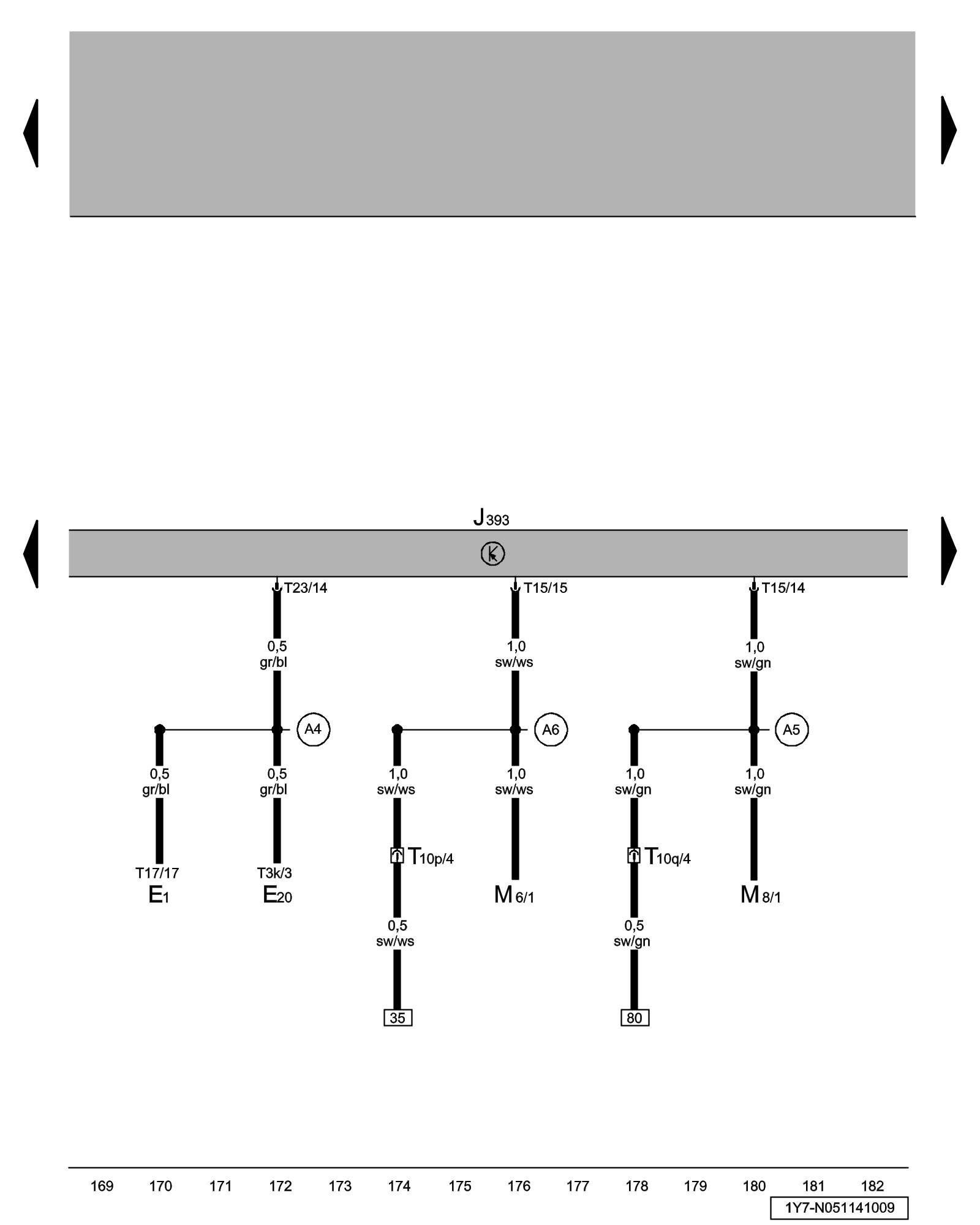

Diagram 651/14 (Tracks 169-182)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Comfort System Central Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E1 - Light Switch

E20 - Instrument Panel Illumination Dimmer Switch

J393 - Comfort System Central Control Module Central Locking System

M6 - Left Rear Turn Signal Lamp

M8 - Right Rear Turn Signal Lamp

T3k - 3-Pin Connector

T10p - 10-Pin Connector, blue, on left A-pillar

T10q - 10-Pin Connector, on right A-pillar, blue

T15 - 15-Pin Connector, on comfort system central control module

T17 - 17-Pin Connector

T23 - 23-Pin Connector, on comfort system central control module

(A4) - Plus Connection (58b) (in instrument panel wiring harness)

(A5) - Right Turn Signal Plus Connection (in instrument panel wiring harness)

(A6) - Left Turn Signal Plus Connection (in instrument panel wiring harness)
