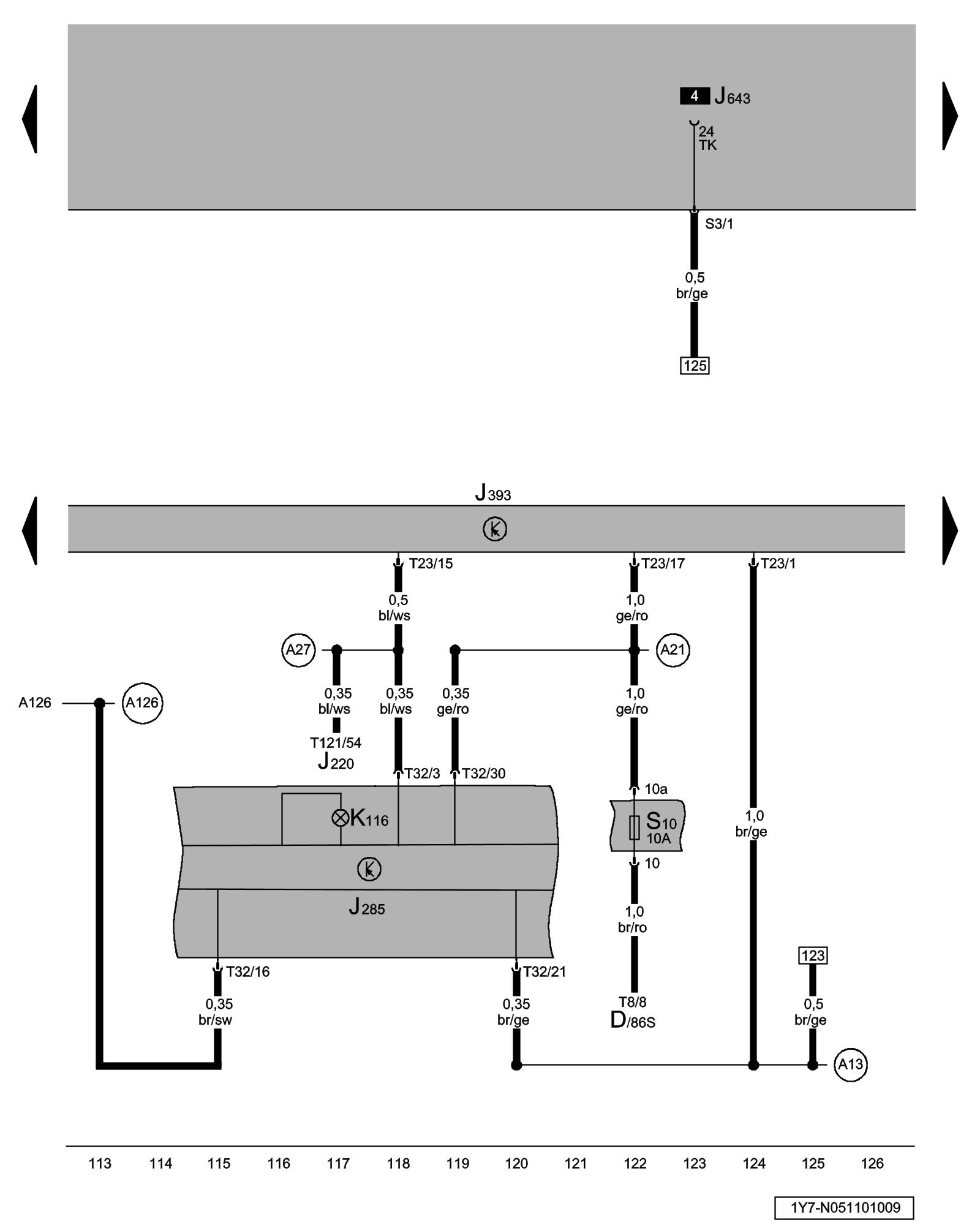

Diagram 651/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Comfort System Central Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

D - Ignition/Starter Switch

J220 - Motronic Engine Control Module (ECM) Locations

J285 - Instrument Cluster Control Module

J393 - Comfort System Central Control Module Central Locking System

J643 - Fuel Primer Relay

K116 - Rear Lid Unlocked Warning Lamp

S10 - Fuses (on fuse/relay panel)

T8 - 8-Pin Connector -D-

T23 - 23-Pin Connector, on J393

T32 - 32-Pin Connector, blue, on instrument cluster

T121 - 121-Pin Connector

(A13) - Door Contact Switch Connection (in instrument panel wiring harness)

(A21) - Connection (86s) (in instrument panel wiring harness)

(A27) - Speed Signal Connection (in instrument panel wiring harness)

(A126) - Rear Lid Contact Switch Connection (in instrument panel wiring harness)
