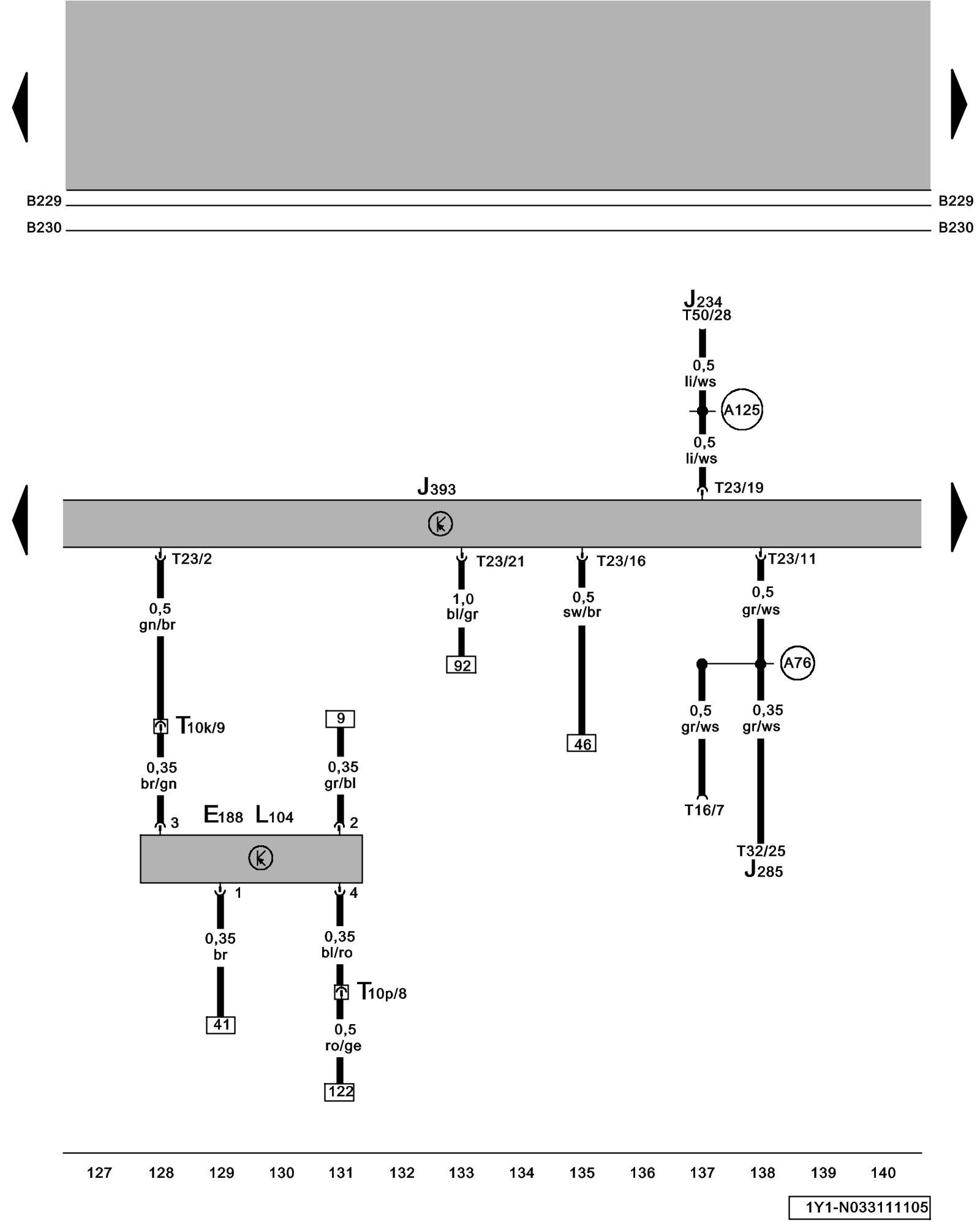

Diagram 633/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Switch for remote unlock, rear lid, Central control module for comfort system





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E188 - Switch for remote unlock, rear lid

J234 - Airbag Control Module Airbag Component Locations

J285 - Control module with indicator unit in instrument panel insert

J393 - Central control module for comfort system Central Locking System

L104 - Illumination for switch remote unlock

T10k - 10-Pin Connector, on A-Pillar left, black

T10p - 10-Pin Connector, on A-Pillar left, blue

T16 - 16-Pin Connector, Data Link Connector (DLC), black, under instrument panel, left

T23 - 23-Pin Connector, on Central control module for comfort system

T32 - 32-Pin Connector, blue, on instrument cluster

T50 - 50-Pin Connector, at J234

(A76) - Connector (K-diagnosis wire) in instrument panel wiring harness

(A125) - Crash Signal Connection (in instrument panel wiring harness)
