Midrange Speaker In Instrument Panel

Speakers

Midrange Speaker In Instrument Panel

Removing

- Switch off ignition, switch off all electrical consumers and remove ignition key.

- Push center cover - 1 - in the direction of - arrow A - and remove it.





- Remove screws - arrows -.

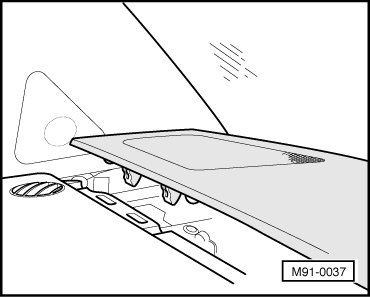

- Lift the plenum chamber cover slightly.

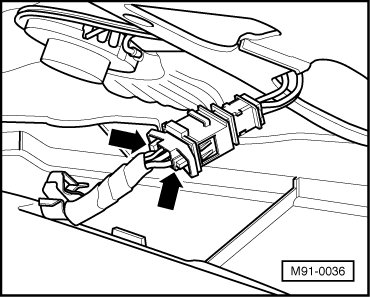

- Disconnect the harness connectors - arrows - on the underside.

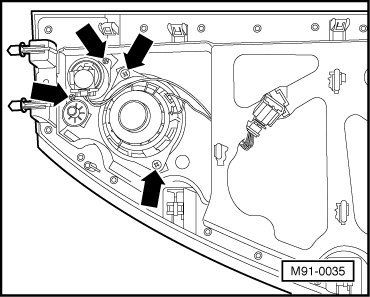

- Remove the screws - arrows - and remove the speaker from the side trim.





Installing

- Install in reverse order of removal, noting the following:

Tightening Specifications: 3 Nm.

• Note the installation location.
