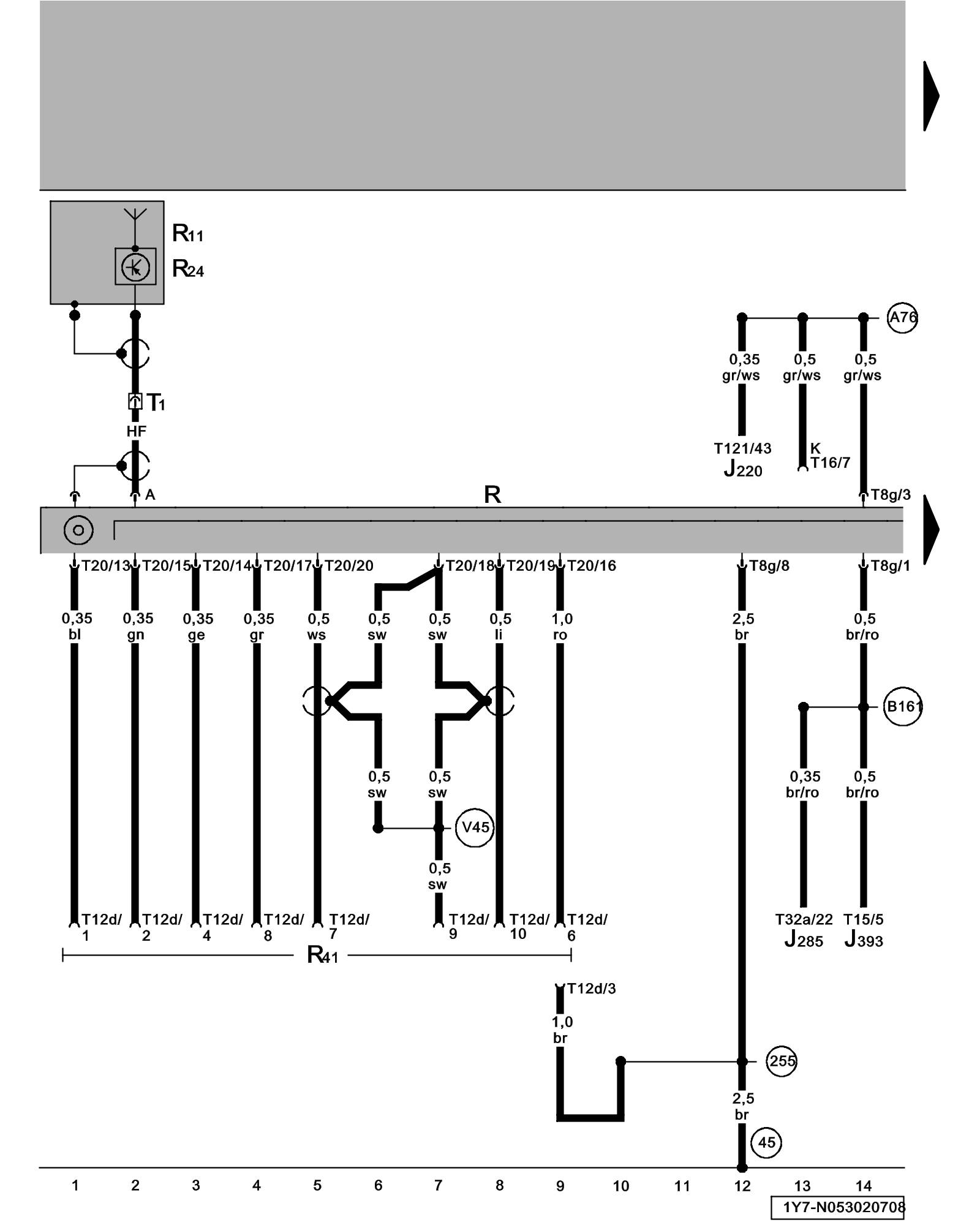

Diagram 653/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio, Antenna, Antenna Amplifier





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J220 - Motronic Engine Control Module (ECM) Locations

J285 - Instrument Cluster Control Module

J393 - Comfort System Central Control Module Central Locking System

R - Radio Premium V and Premium 5.5 Component Overview

R11 - Antenna Locations

R24 - Antenna Amplifier Locations

R41 - CD Changer Premium V and Premium 5.5 Component Overview

T1 - Single Connector

T8g - 8-Pin Connector

T12d - 12-Pin Connector

T15 - 15-Pin Connector

T16 - 16-Pin Connector, Data Link Connector (DLC), bellow steering column, left

T20 - 20-Pin Connector, on Radio

T32a - 32-Pin Connector, on Radio

T121 - 121-Pin Connector

(45) - Ground Connection (behind instrument panel, center)

(255) - Ground Connection 1 (in radio wiring harness)

(A76) - K-Diagnostic Connection (in instrument panel wiring harness)

(B161) - Anti-Theft Alarm System Connection (in interior wiring harness)

(V45) - Connection 2 (shielding)(in CD changer wiring harness)

Next Diagram 653/3 (Tracks 15-28)
