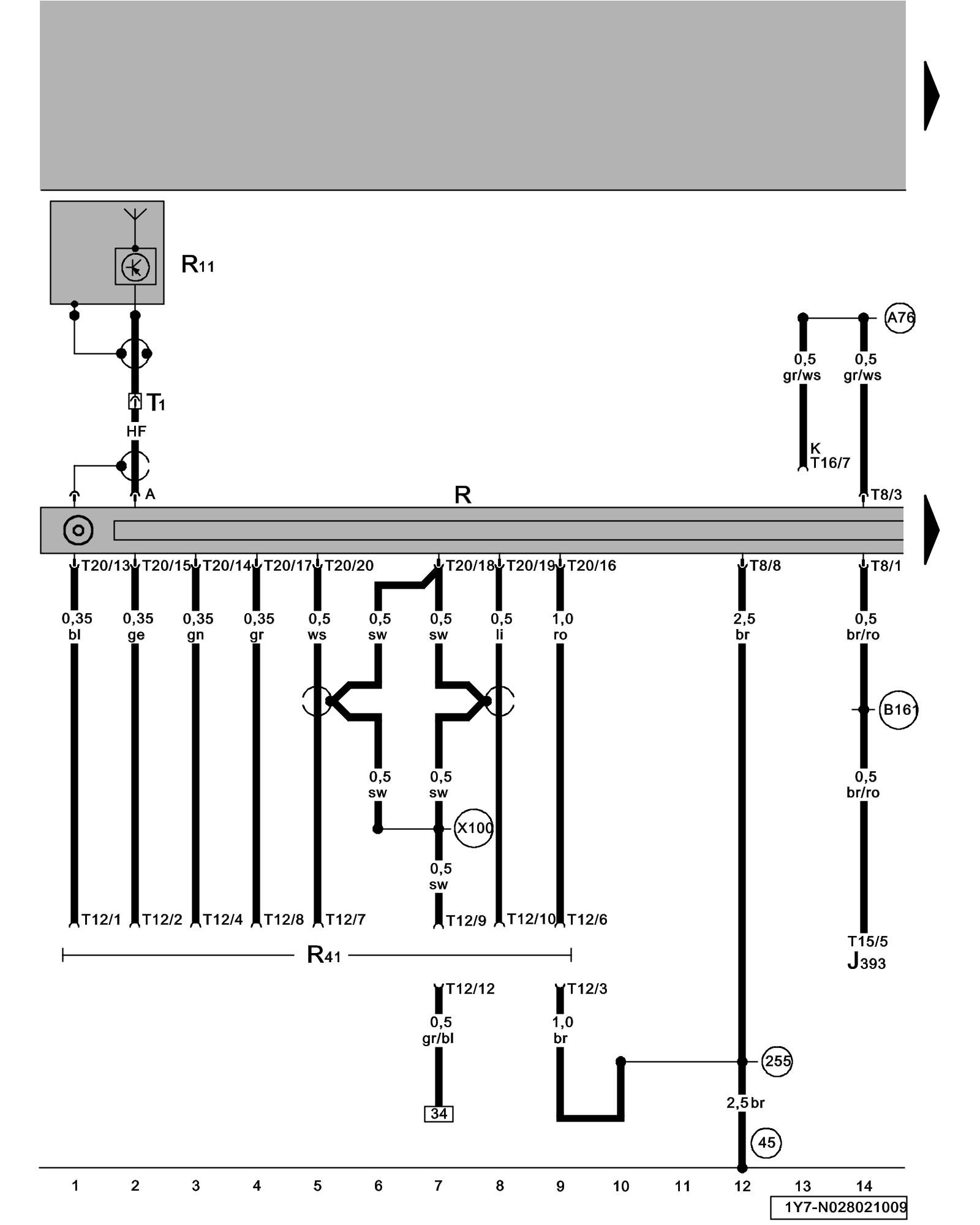

Diagram 628/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio, Antenna





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J393 - Comfort System Central Control Module Central Locking System

R - Radio Premium V and Premium 5.5 Component Overview

R11 - Antenna Locations

R41 - CD Changer Premium V and Premium 5.5 Component Overview

T1 - Single Connector

T8 - 8-Pin Connector

T12 - 12-Pin Connector

T15 - 15-Pin Connector

T16 - 16-Pin Connector, black, Data Link Connector (DLC), below instrument panel, left

T20 - 20-Pin Connector, on Radio

(45) - Ground connection, behind instrument panel, center

(255) - Ground connection, -1-, in wiring harness radio

(A76) - Connector (K-diagnosis wire) in instrument panel wiring harness

(B161) - Connector (anti-theft warning system), in wiring harness interior

(X100) - Shielding Connection (in optional equipment wiring harness)

Next Diagram 628/3 (Tracks 15-28)
