Rear Parking Aid Warning Buzzer

Parking Aid

Rear Parking Aid Warning Buzzer

The Rear Parking Aid Warning Buzzer (H15) is installed behind the right side trim panel.

CAUTION!
• Turn off the ignition and all electrical components.

• Remove the key.

Removing

- Remove the right side trim panel.

- Disconnect the connector on the Rear Parking Aid Warning Buzzer (H15).

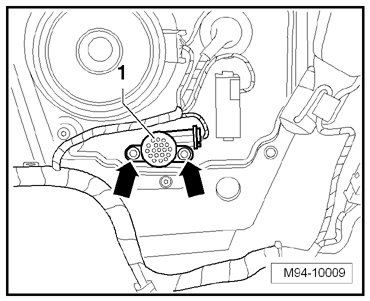

- Remove rivets - arrows - and remove the Rear Parking Aid Warning Buzzer (H15) - 1 -.





Installing

Install in reverse order of removal.

• If a new Rear Parking Aid Warning Buzzer (H15) is installed, it is not necessary to perform coding, basic setting or adaptation.
